The Bookeye 5 V2 Kiosk Edition was designed specifically as a self service book scanner or self service book copier. A casual user, from any walk of life, can quickly and easily operate this device.
In libraries, archives and other public institutions, the Bookeye 5 V2 Kiosk is often found as an integral part of the infrastructure. Through the freely configurable touchscreen, the user interface of the scanner can be precisely matched to the requirements of the customers (and to their corporate identity).
The Bookeye 5 V2 Overhead Book Scanner is best used for:
Preserving books and sensitive historical documents
Scan newspapers, periodicals, catalogs and magazines
Scan and store images to mobile devices with Scan2Pad®
A 21 inch full HD multi-touch screen allows the operator to control image quality and make modifications on the fly. Pinch and swipe on the touchscreen the same way you would on a smartphone to zoom or move around in the image during preview. Attach a second, optional screen to operate the scanner with the main touchscreen and preview images using the second screen. The Live Preview function uses a second matrix camera to present a live video view of the document position before scanning.

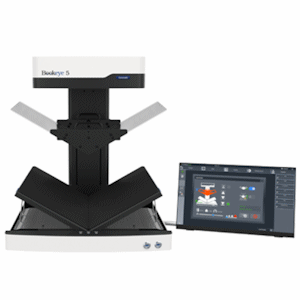

There are three possible positions to attach the touchscreen: attached to the scanner neck, attached to the side of the scanner closer to the front or attached to the side of the scanner closer to the back, where you can angle the monitor in various degrees. It can also be used unattached, lying flat next to the scanner. The picture above shows the three attached positions. Optionally, a separate preview screen can be mounted to the neck, if the main touch is on the side.
21" Live Preview Screen
An integrated 21" Touchscreen allows the operator to control image quality and make some modifications on the fly. Scanned images can be output to USB, eMail, network, printer or on a mobile device like an iPad or Anrdoid tablet.
Unique Book Cradle
The unique magnetically coupled book cradle solution allows users to digitize books and documents A2+ in size, by either laying them flat on the scanning bed at 180°or in the V-cradle, at an angle of 120° for gentle, protective handling of the source material. The two sides of the cradle are magnetically coupled so that the book fold can be moved easily in the center for optimal scan results.
Note the 3 gray buttons located on the front/center of the cradle. This allows for easy reach scanning as pages are being turned or held down. The buttons are Start, Scan and Send.
Key Features
Color overhead book scanner
Tablet Holder
Scan2Pad Wireless controller
Scans documents up to 18" x 24.4"
400 x 400 dpi resolution (upgradeable)
1.1 Sec. for A2+ Scan @ 200 dpi
Book fold correction (channel)
Automatic finger- and thumb-print removal
Automatic crop and deskew
Automatic white balance and black value
Gigabit TCP/IP Network Interface
Standalone device with its own Linux PC
Scan2USB -- Walk up Scanning to any USB device via 2 USB 3 Ports
Scan2Print -- Copy to networked printers or hot folders
Scan2Network -- Output to network resources, SMB, FTP
Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
Scan2Pad® -- Operation via tablet, smartphone or other mobile device (Kiosk Edition)
Key Functions
LED lamps, no warm up, IR/UV free
Large color 22" touchscreen for scan QC
2 Front USB 3.0 Ports for Scan 2 USB
4 green start scan buttons on the front side of the book beds.
User interface configurable in many languages
Virus resistant Linux OS
OS independent, runs with Windows 7, 8, 10, Linux, Mac
ScanWizard uses any browser: IE, Safari, Chrome, Firefox
