This model has been replaced by the Gen 5 Edition. Please follow this link to see the new version.

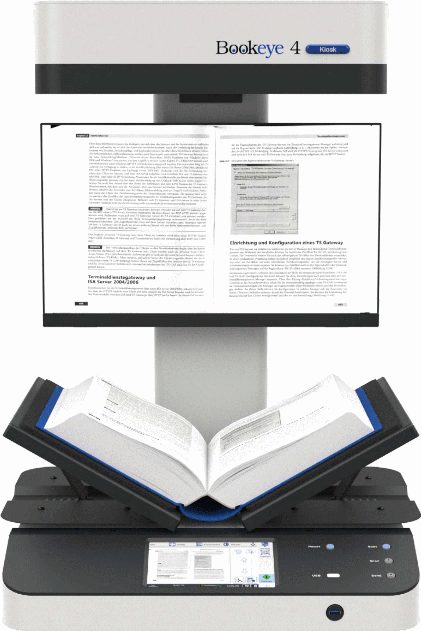

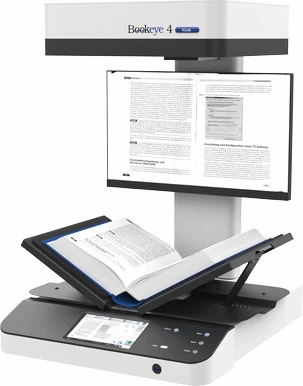

Bookeye V3 Book Scanner
Full Features of the Larger A2+ Model at Entry Level Price
Bookeye® 4 V3 Kiosk is a true scanner solution, not just a digicam mounted on an expensive frame and it delivers professional image results. It was designed specifically as a self service book scanner / book copier for formats 50 % larger than A3 (390 x 480mm / 15.3 x 18.9 inch). With all the features of the larger A2+ model, the Bookeye ® 4 V3 Kiosk is perfect for offices, libraries, copy shops or other self service environments.
The Bookeye® 4 V3 Kiosk is so small that it can be set up on any desktop and the operator can easily scan in minutes. A casual user, from any walk of life, can quickly and easily operate this device. It offers the remarkable image quality of the larger overhead book scanner models at affordable, entry level pricing.
[email protected] 4 V3 Kiosk was designed specifically for self service
applications. A casual user, from any walk of life, can quickly and easily operate this book scanner.
The unique book cradle solution allows users to digitize bound documents at a resolution of 400 dpi and A3+ in size, by either
laying them flat on the scanning bed or in the V-cradle, at an angle of 120 degrees for gentle, protective handling of the source
material. Scanned images can be output to USB, eMail, network printer or on a mobile device like an iPad or Android tablet.
The [email protected] 4 V3 Kiosk copier has an integrated billing module.
This means that for all applications that do not have an existing
card or billing system, [email protected] 4V3 Kiosk can take over the
billing itself. Configurable invoice printing and journaling are
standard functions in the [email protected] 4 V3 Kiosk as well as remote
locking and unlocking of the system.
The Scan2Net platform is the technological foundation of all WideTEK
and Bookeye scanners from Image Access. The platform replaces the proprietary scanner drivers and software that traditional scanners require with the fastest common, nonproprietary inter-device connection available: TCP/IP over Ethernet. With network interface speeds much higher than USB 2.0 or USB 3.0 scanners, Scan2Net devices are able to reach unrivaled performance at extremely low connectivity cost.
Scan2Net scanners feature a 64bit Linux based operating system, dedicated to scanner specific imaging and mechanical control tasks, maximizing scanning speeds and performance.
State of the Art Illumination
State of the art illumination using bright white LEDs guarantees long lifetime and a low cost of ownership, since there are practically no consumables necessary over the life of the product. Cutting edge camera technology, with a dust-protected, fully sealed camera box holding CCD systems that use a patented stitching procedure, delivers up to 600 dpi scanner resolution.
22" Preview Touch Screen
An integrated 22" Touchscreen allows the operator to control image quality and make some modifications on the fly. Scanned images can be output to USB, eMail, network, printer or on a mobile device like an iPad or Anrdoid tablet.
Unique Book Cradle
The unique book cradle solution allows users to digitize bound documents at a resolution of 400 dpi and A3+ in size, by either lying them flat on the scanning bed or in the V-cradle, at an angle of 120 degrees.
Note: the 4 green start scan buttons located on the front edge of the cradle shown are only available on the V2 and V1 series.
Scan Direct to USB 3
One USB 3.0 port in the front of the device (next to screen) allows the user to plug in a USB storage device, scan the source document to the USB device and walk away - without the need for a connected PC - ideal for every self-service environment.
Scan via a Tablet
The Scan2Pad® option enables wireless connection of the Bookeye® 4 V3 Kiosk directly to mobile devices like iPads and Android tablets. The book scanner can be operated directly from your iPad or tablets and the scanned images are available immediately on the mobile device for further processing and storage.
Scan2Pad uses the extensive functionality of the Bookeye® 4 Kiosk scanner. This includes creation of PDF files, automatic size recognition of the source document, color, grayscale and black and white scanning and of course, the well known high quality image results. Each document is stored immediately after scanning in the Scan2Pad app. This ensures that all images are available without connection to the scanner at any time
Color overhead book scanner
Scans documents up to 15.3" x 18.9"
400 x 400 dpi resolution (upgradeable)
0.8 Sec. for A3+ Scan @ 150 dpi
Book fold correction (channel)
Automatic finger- and thumb-print removal
Automatic crop and deskew
Gigabit TCP/IP Network Interface
Standalone device with its own Linux PC
Scan2USB -- Walk up Scanning to any USB device via USB 3.0
Scan2Print -- Copy to networked printers or hot folders
Scan2Network -- Output to network resources, SMB, FTP
Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
Scan2Pad® -- Operation via tablet, smartphone or other mobile device
LED lamps, no warm up, IR/UV free

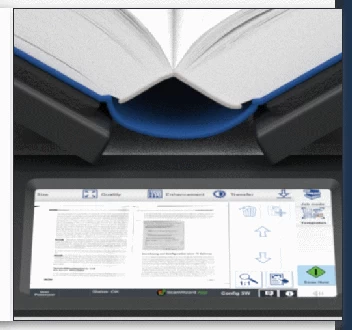

Large color 7" touchscreen for simplified operation
Large color 22" touchscreen for scan QC
User interface configurable in many languages
Virus resistant Linux OS
OS independent, runs with Windows 7, 8, 10, Linux, Mac
ScanWizard uses any browser: IE, Safari, Chrome, Firefox
