Bookeye 5 V1A-C35/C50 Book Scanner

Scan books up to 25 x 36 Inches

Bookeye V1A Book Scanner 35 cm edition

The Bookeye 5
V1A-C35/C50 Book Scanner

  • Scan books up to 25" x 36"
  • Up to 13.75" thick (35 CM)
  • Upgradeable to 50 CM (18.7") thick
  • Motorized book cradle
  • Motorized glass plate
  • Color
Color Bundle Price

Click here for more pricing

Bookeye V1A-C35 Book Scanner Professional Edition

Digitization Excellence and High Productivity

Bookeye® 5 V1A-C35/C50 is the professional solution for digitization projects that require high quality images at maximum productivity, while eliminating strenuous, repetitive tasks required of an operator to get the job done.

Bookeye 5 V1A-C35 scans originals up to A1 in size at high speeds, with the unique book cradle for books 35 cm (13.75 inches) thick. The scanner distinguishes three modes: fixed plate glass, without glass plate and with an automatic opening at 45 degrees.

Together with software packages such as Batch Scan Wizard, BCS-2® and Goobi UCC, even the toughest requirements of a digitization project can be met.

Bookeye 5 V1A-C35/50 Professional Edition

Fully automatic operation, sensor controlled pressure

In Auto Mode, the scanning process is fully automatic. Sensors in the book cradle plates control the pressure. The book cradle plates are motor driven and deal with a book thickness of up to 35 cm (Optional 50 cm book cradle available.)

V1A motorized cradle close up

The glass plate is ideal for scanning in flat mode with very thick books. The glass plate applies the ideal amount of pressure to the source material without damaging it, assisting in flattening the curve of the book fold.

An integrated 27" Touchscreen allows the operator to control image quality and make some modifications on the fly. Scanned images can be output to USB, eMail, network, printer or on a mobile device like an iPad or Anrdoid tablet.

27 inch touchscreen close-up
Bookeye ScanWizard Software (included)
Imaging Functions
  • Automatic Focus and Exposure Controls
  • Automatic Cropping with Page Masking
  • Automatic Border Recognition and Removal
  • Automatic Despeckle and Deskew Functions
  • Automatic Finger Removal
  • Automatic Book Channel Compensation
  • Automatic Document Rotation or Mirror
  • Automatic Page Splitting
  • Book Fan Removal (no side page edges showing)
  • Black Border Removal
  • Punch Hole Removal
  • Virtual Rescan with Real Time Image Editing
  • Scan up to 400 DPI upgradeable to 600 DPI
  • Anti-reflection Mode for glossy documents
  • Scan modes: Fast,High Quality and Anti-reflective
  • Real Time Image Enhancement: Brightness, Contrast, Sharpness
  • Color Removal
  • Color (8-bit/24-bit), Grayscale, Bitonal, Halftone, Inverted
  • ICC Profiles are supported and can be embedded in file
  • Color Space: Native, RGB, Adobe RGB
  • OCR for single and multipage scanned documents.
  • Multiple file format outputs
  • Many more features

USB Close-up

State of the art illumination using 2 bright white LED bars guarantees long lifetime and a low cost of ownership, since there are practically no consumables necessary over the life of the product. Cutting edge camera technology, with a dust-protected, fully sealed camera box holding CCD systems that use a patented stitching procedure, delivers up to 600 dpi scanner resolution.

Books can be up to 19.7 Inches thick with the C50 option. The motorized cradle supports can be independantly adjust to protect the delicate bindings of large books.

18 Inch thick books

USB Close-up

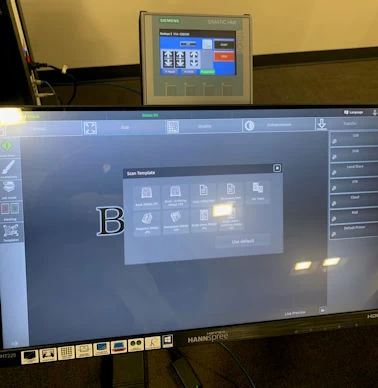

Control the motorized cradle using the Siemens designed controller. Adjust the left or right side supports to protect delicate bindings.

Separate controls on the touchscreen allow the user to control the glass plate to raise enough to turn the pages of the book then return to scan position.

Key Features
  • Scan books up to 25" x 36"
  • Up to 13.75" thick (35 CM)
  • Upgradeable to 50 CM (19.7") thick
  • Motorized Book Cradle
  • Motorized Glass Plate
  • Color Overhead book scanner
  • 600 x 600 dpi resolution
  • 1.5 Sec. for A1+ Scan @ 200 dpi
  • V-shaped book cradle 140 - 180 degrees
  • Book fold correction (channel)
  • Auto Mode for automatic scanning and opening of glass plate after scanning operation
  • Automatic finger- and thumb-print removal
  • Automatic crop and deskew
  • Automatic white balance and black value
  • Digital color balance
  • Gigabit TCP/IP Network Interface
  • Standalone device with its own Linux PC
  • Scan2USB -- Walk up Scanning to any USB device via USB 3.0
  • Scan2Print -- Copy to networked printers or hot folders
  • Scan2Network -- Output to network resources, SMB, FTP
  • Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
Key Functions
  • LED lamps, no warm up, IR/UV free
  • Large color 27" monitor for accurate image QC and realtime adjustments
  • Large color 22" touchscreen for scanner controls
  • 2 USB 3.0 Ports for Scan output to USB
  • User interface configurable in many languages
  • Virus resistant Linux OS
  • OS independent, runs with Windows 7, 8, 10, Linux, Mac
  • ScanWizard uses any browser: Edge, Safari, Chrome, Firefox
  • Remote maintenance and troubleshooting
  • Firmware updates via web interface
  • Bundle includes 12 months Full Coverage Warranty
