Bookeye 4 V1A Book Scanner

Professional Edition

with automated book cradle and glass plate

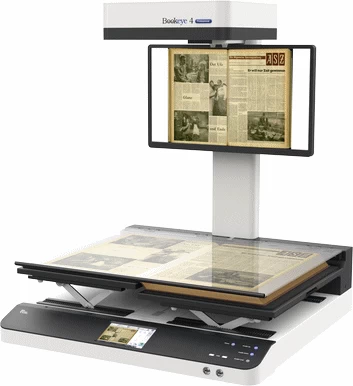

Bookeye V1A Book Scanner Kiosk edition

The Bookeye 4
V1A Book Scanner
Professional Edition

  • Scans documents up to 25" x 33.5"
  • Motorized book cradle
  • Glass Plate
  • Color overhead book scanner
  • 600 x 600 dpi resolution
  • 1.5 Sec. for A1+ Scan @ 200 dpi
  • book fold correction
  • Automatic finger- and thumb-print removal
  • Automatic crop and deskew
  • Standalone with internal PC
  • Scanning software included
  • Gigabit TCP/IP Network Interface
Discontinued.
Please visit the Bookeye 5 model

Bookeye V1A Book Scanner Professional Edition

Digitization Excellence and High Productivity

The flagship in the Bookeye® 4 family of book scanners is the Bookeye® 4 V1A book scanner. Scanning A1+ formats at 600 dpi scanner resolution, the Bookeye® 4 V1A features an automatic book cradle with up to 4" (10 cm) height adjustment, a glass plate that opens automatically and of course the 140 degree V-book cradle.

Bookeye® 4 V1A is the world`s only working A1+ overhead book scanner that accommodates both flat documents - with or without the glass plate; as well as large, fragile bound documents, using the protective V cradle.

In libraries, archives and other public institutions, the Bookeye® 4 V1A Kiosk is is suitable for digitization projects that require high quality and maximum productivity even in 24/7 operation.


Bookeye 4 V1A Professional Edition

Motorized Book Cradle

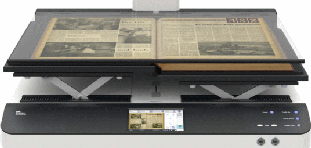

V1A motorized cradle close up

The automatic motorized book cradle with up to 4" (10 cm) height adjustment is programmable for the thickness of a book. Set it once and scan the book without having to constantly control the position of each cradle and the pressure on the book to the glass plate.

Features
V1A motorized cradle close up

The glass plate is ideal for scanning in flat mode with very thick books. The glass plate applies the ideal amount of pressure to the source material without damaging it, assisting in flattening the curve of the book fold.

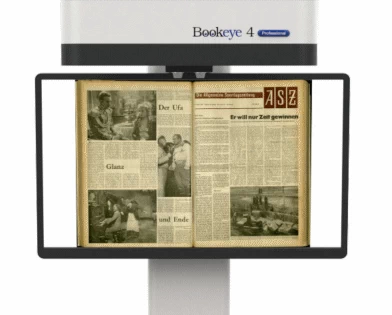

27 inch touchscreen close-up

An integrated 27" Touchscreen allows the operator to control image quality and make some modifications on the fly. Scanned images can be output to USB, eMail, network, printer or on a mobile device like an iPad or Anrdoid tablet.

The Scan 2 Photoshop Plug-in
Photoshop plug-in logo

The new plug-in Scan2PS for Adobe® Photoshop® software is particularly suitable for the art sector, but also for any applications that involve image editing. The plugin exports and saves the scanned images either as a JPEG or TIFF file directly into the program. This saves an enormous amount of time and guarantees a high document throughput. Images can be scanned at resolutions up to 600 optical dpi, to produce digital images of the highest quality and with color accuracy.

Scan2PS takes advantage of the extensive capabilities of Scan2Net® scanners; including automatic size detection, crop and deskew, image splitting, color management and outputs in color, grayscale and black and white; to name just a few of the standard functions and features. It complements and extends the patented Scan2Net® technology that powers all Image Access scanners. The plug-in can be used on Adobe Photoshop software versions off CS6 and the Creative Cloud® and is available for customers to download free of charge in the Customer Service Portal. There you will also find a short installation instruction, which we recommend you read before installing.

The Scan2Net platform

The Scan2Net platform is the technological foundation of all WideTEK and Bookeye scanners from Image Access. The platform replaces the proprietary scanner drivers and software that traditional scanners require with the fastest common, nonproprietary inter-device connection available: TCP/IP over Ethernet. With network interface speeds much higher than USB 2.0 or USB 3.0 scanners, Scan2Netl devices are able to reach unrivaled performance at extremely low connectivity cost.

Scan2Net scanners feature a 64bit Linux based operating system, dedicated to scanner specific imaging and mechanical control tasks, maximizing scanning speeds and performance.

LED Lights

State of the art illumination using bright white LEDs guarantees long lifetime and a low cost of ownership, since there are practically no consumables necessary over the life of the product. Cutting edge camera technology, with a dust-protected, fully sealed camera box holding CCD systems that use a patented stitching procedure, delivers up to 600 dpi scanner resolution.


USB Close-up

Two USB 3.0 ports in the front of the device (next to screen) allows the user to plug in multiple USB storage devices, scan the source document to the USB device and walk away - without the need for a connected PC - ideal for every self-service environment.

Key Features
  • Scans documents up to 25" x 33.5"
  • Motorized book cradle
  • Glass Plate
  • Color overhead book scanner
  • 600 x 600 dpi resolution
  • 1.5 Sec. for A1+ Scan @ 200 dpi
  • V-shaped book cradle 140 - 180 degrees
  • Book fold correction (channel)
  • Automatic finger- and thumb-print removal
  • Automatic crop and deskew
  • Automatic white balance and black value
  • Digital color balance
  • Gigabit TCP/IP Network Interface
  • Standalone device with its own Linux PC
  • Scan2USB -- Walk up Scanning to any USB device via USB 3.0
  • Scan2Print -- Copy to networked printers or hot folders
  • Scan2Network -- Output to network resources, SMB, FTP
  • Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
  • Scan2Pad® -- Operation via tablet, smartphone or other mobile device
Key Functions
  • LED lamps, no warm up, IR/UV free
  • Large color 7" touchscreen for simplified operation
  • Large color 22" touchscreen for scan QC
  • 2 Front USB 3.0 Ports for Scan 2 USB
  • 4 green start scan buttons on the front side of the book beds.
  • User interface configurable in many languages
  • Virus resistant Linux OS
  • OS independent, runs with Windows 7, 8, 10, Linux, Mac
  • ScanWizard uses any browser: IE, Safari, Chrome, Firefox
  • Remote maintenance and troubleshooting
  • Firmware updates via web interface
  • Bundle includes 12 months Full Coverage Warranty
