Without being loaded with a lot of costly, unnecessary "features", the Bookeye ® 4 V2 Basic is still a full-fledged book scanner or book copier, ready for use anywhere where grayscale is enough.
Equipped with a standard scanning application, Bookeye® 4 V2 Basic scans documents, such as magazines, files, folders, bound documents, contracts, and accounting ledgers at a resolution of 400 dpi at high speeds.
The Scan2Net platform is the technological foundation of all WideTEK
and Bookeye scanners from Image Access. The platform replaces the proprietary scanner drivers and software that traditional scanners require with the fastest common, nonproprietary inter-device connection available: TCP/IP over Ethernet. With network interface speeds much higher than USB 2.0 or USB 3.0 scanners, Scan2Netl devices are able to reach unrivaled performance at extremely low connectivity cost.
Scan2Net scanners feature a 64bit Linux based operating system, dedicated to scanner specific imaging and mechanical control tasks, maximizing scanning speeds and performance.
State of the Art Illumination
State of the art illumination using bright white LEDs guarantees long lifetime and a low cost of ownership, since there are practically no consumables necessary over the life of the product. Cutting edge camera technology, with a dust-protected, fully sealed camera box holding CCD systems that use a patented stitching procedure, delivers up to 400 dpi scanner resolution.
22" Preview Touch Screen
An integrated 22" Touchscreen allows the operator to control image quality and make some modifications on the fly. Scanned images can be output to USB, eMail, network, printer or on a mobile device like an iPad or Anrdoid tablet.
Unique Book Cradle
The unique book cradle solution allows users to digitize bound documents at a resolution of 400 dpi and A3+ in size, by either lying them flat on the scanning bed or in the V-cradle, at an angle of 120 degrees.
Note the 4 green start scan buttons located on the front of the cradle. This allows for easy reach scanning as pages are being turned or held down.
Scan Directly to TWO USB 3 ports
Two USB 3.0 ports in the front of the device (next to screen) allows the user to plug in multiple USB storage devices, scan the source document to the USB device and walk away - without the need for a connected PC - ideal for every self-service environment.

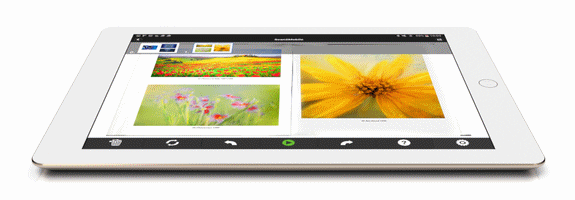

Scan via a Tablet
The Scan2Pad® option enables wireless connection of the Bookeye® 4 V3 Kiosk directly to mobile devices like iPads and Android tablets. The book scanner can be operated directly from your iPad or tablets and the scanned images are available immediately on the mobile device for further processing and storage.
Scan2Pad uses the extensive functionality of the Bookeye® 4 Kiosk scanner. This includes creation of PDF files, automatic size recognition of the source document, color, grayscale and black and white scanning and of course, the well known high quality image results. Each document is stored immediately after scanning in the Scan2Pad app. This ensures that all images are available without connection to the scanner at any time
GRAYSCALE overhead book scanner
Scans documents up to 15.3" x 18.9"
400 x 400 dpi resolution (upgradeable)
0.8 Sec. for A3+ Scan @ 150 dpi
Book fold correction (channel)
Automatic finger- and thumb-print removal
Automatic crop and deskew
Gigabit TCP/IP Network Interface
Standalone device with its own Linux PC
Scan2USB -- Walk up Scanning to any USB device via USB 3.0
Scan2Print -- Copy to networked printers or hot folders
Scan2Network -- Output to network resources, SMB, FTP
Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
Scan2Pad® -- Operation via tablet, smartphone or other mobile device
LED lamps, no warm up, IR/UV free
Large color 7" touchscreen for simplified operation
Large color 22" touchscreen for scan QC
2 Front USB 3.0 Ports for Scan 2 USB
4 green start scan buttons on the front side of the book beds.
User interface configurable in many languages
Virus resistant Linux OS
OS independent, runs with Windows 7, 8, 10, Linux, Mac
ScanWizard uses any browser: IE, Safari, Chrome, Firefox
