The Canon imageFORMULA DR-G2090 production document scanner with USB-only connectivity provides a high-performance, reliable, and flexible scanning solution, recommended for non-networked environments where Ethernet connectivity is not required. The DR-G2090 scanner is capable of handling a wide variety of document sizes, from business card up to 11 x 17 inches. Flexible paper feed and output guides further enhance the scanners’ ability to reliably feed all types of documents.
Wide Variety of Applications
The dr-G2090 scanner is ideal for processing large amounts of documents in mission-critical, centralized production scanning environments. It has been developed to withstand the rigors of production-level scanning while maintaining high-speed, high quality imaging. The dr-G2090 scanner can help businesses improve productivity, maintain continuity, increase efficiencies and securely manage information
The dr-G2090 scanner handles up to 90 pages per minute—both sides in a single pass*—and holds up to 300 sheets in the ADF. It is also equipped with a dedicated, onboard image processing chip, making it capable of maintaining fast scanning speeds, independent of PC performance. These features all help contribute to improve productivity
Reliable and Flexible
The DR-G2090 scanner is flexible enough to reliably handle a variety of document types. From business cards to ledger-sized documents, long documents, and thin or thick documents.** This helps reduce labor-intensive pre-sorting and job preparation. Plus, double-feed detection helps to ensure that no data is lost. A durable, solid-body design as well as heavy duty feed and eject trays contribute to the scanner’s reliability.
Environment in Mind
The DR-G2090 USB scanner is registered EPEAT gold and meets
ENERGY STAR® guidelines for energy efficiency. It also complies with both the EU RoHS and WEEE directives for the reduction
of hazardous substances and waste products.***
Bar Code Software Included
The dr-G2090 scanner now includes the Canon Bar Code software. This software has the ability to:
Can read up to 4 bar codes per page
Separate files by barcode
Name files using barcode data
Create or point a file to a specific folder using the barcode data
Export the file name, path, and date/time stamp as a .csv file
The dr-G2090 scanner features an intuitive control panel that allows easy access to scanner settings, and user-programmable job buttons for one-touch operation. This scanner is also equipped with a motorized paper feed tray that can be adjusted to the height of the batch, and flexible paper feed and output guides. This, plus the ability to handle a variety of document types,** allows for unattended batch scanning, which can help optimize workflows and increase efficiencies.
(These features were on the dr-G1100 series as well)
Improved eject brake for neatly aligned output documents
The scanner’s paper ejection mechanism features a new motor with a brake that controls the speed of ejected documents. Scanned documents are neatly stacked in the document eject tray, which saves you from having to take the time to straighten batches by hand.
Ejected documents are messy, and must be straightened and aligned by the operator
dr-G2090 / DR-G2140
Ejected Documents are neatly stacked by the scanner, so the operator doesn't have to straighten the output batches.

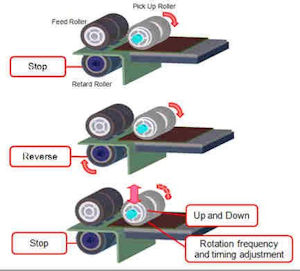

Three Different Paper Feeding Modes to handle different types of paper
Normal mode: Retard Roller is at a stop to separate the second and later pages Separation: High <Strong > Retard Roller has reverse torque to push back the second and later pages. Separation: Low <Soft> Retard Roller is at a stop to separate the second and later pages. Pick Up Roller rotates intermittently not to move the paper fast more than necessarily.

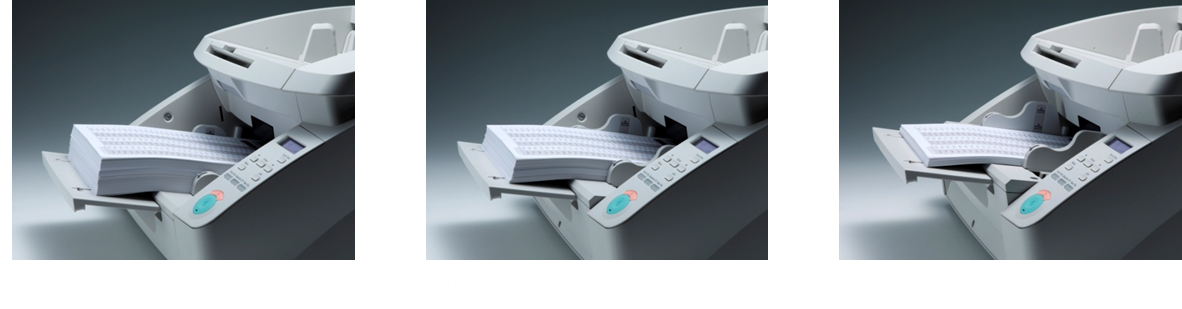

High Volume Feeder with Three Selectable positions
The home position of the motorized paper feed tray can be set to one of three heights according to the volume of a typical batch, which helps minimize the wait time before scanning begins. Each position accommodates up to approximately 100, 300, and 500 sheets, respectively

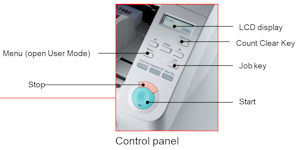

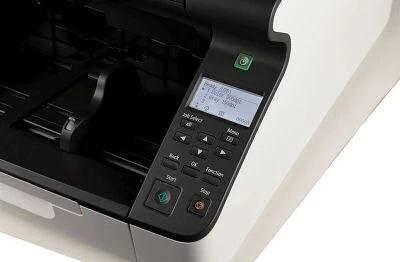

Convenient control panel for operator handling ease

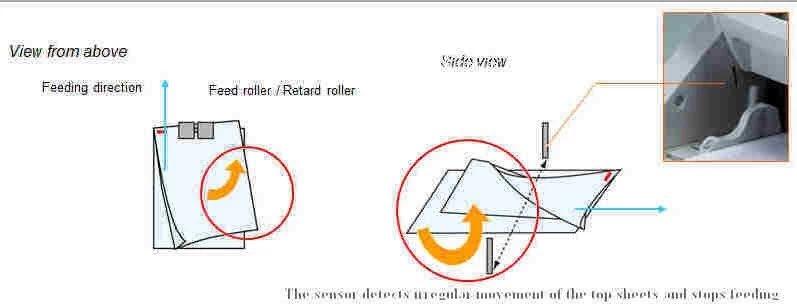

The scanner’s staple detection feature detects when documents are stapled together and immediately halts feeding to prevent damage to the document and/or scanner. The scanner’s sensors detect the bent corner of the stapled document, an error message is displayed, and the scanning process is halted.
Durable and Easy Maintenance
The dr-G2090/DR-G2140 feature a solid body to handle the demands of production-level scanning. Suggested daily volumes are rated at 50,000/70,000 sheets per day, respectively*. To maintain optimal performance, it is recommended the scanner’s rollers be replaced every 450,000 scans and the Separation Pad every 6,000,000 scans. A user-installable Exchange Roller Kit and Separation Pad (sold separately) are available for replacing worn rollers or pad—no service technician is required.

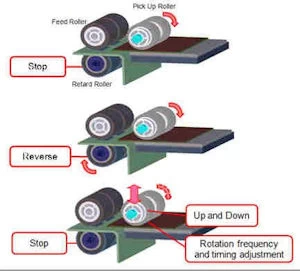

Exchange Roller Kit
(Feed, retard and Pick rollers)
