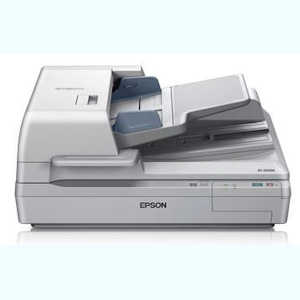

DS-70000 Flatbed and Document Scanner
DS-70000 device scans documents up to 11.7"x17" on both the flatbed or through the ADF paper chute.
The ADF Duplex speed is 70 ppm/140 images per minute (ipm).
The Daily Duty Cycle is 8,000 pages per day
Warranty: 3 year Next Business Day Replacement
DS-70000 Scanner Features
Now, your workgroup can take advantage of high-speed 2-sided document imaging, without breaking the bottom line. The fast, affordable WorkForce DS-70000 delivers remarkable scans from 2.7" x 4.7" up to 11.7" x 100", quickly scanning 2-sided documents in just one pass. Use the 200-sheet Automatic Document Feeder (ADF) to scan stacks of 1- or 2-sided, large-size documents. Or, use the 11.7" x 17" flatbed to scan drawings or maps, hard-bound books or other odd-sized items. The WorkForce DS-70000 blazes through each task at speeds up to 70 ppm / 140 ipm1. And, it consistently delivers vivid colors and crisp, sharp text thanks to its 4 line CCD sensor (RGB and Black). It even makes it easy to dropout selected colors or choose a color and convert it to black. With this versatile performer, you get high-volume, precision, large-format document imaging. Plus, with productivity software included and the optional networking module, each member of your team can access high performance scanning for critical project needs.
Features of the DS-70000 document scanner with flatbed
- Capture large, 2-sided documents in a single scan — scans documents as small as 2.7" x 4.7" up to 11.7" x 100" via the ADF or 11.7" x 17" via the flatbed
- Boost productivity — one-pass duplex scanning at speeds of 70 ppm / 140 ipm1
- Achieve remarkable results — 4 line CCD sensor (RGB and black) provides vivid color and crisp, sharp text
- Work smarter and more efficiently — built-in 200-sheet Automatic Document Feeder, plus auto duplex scanning
- Ultrasonic double-feed detector — automatically stops the scanning process if two pages feed together; just separate the pages and continue
- Take advantage of convenient, network scanning capabilities — use the optional networking module and included Document Capture Pro software to scan to any PC on the local network1
- Scan directly to popular cloud services — scan to SharePoint®, Evernote®, Google Docs and more1
- Scan to searchable PDF — save scanned documents as PDF files
- Do more with powerful productivity software — includes Epson® Scan, Document Capture Pro (Windows® only) and ABBYY® FineReader® Sprint OCR
- One-touch scanning — create up to 30 user-programmable jobs1
- Use with Windows or Mac® — includes TWAIN and ISIS drivers and offers fast Hi-Speed USB 2.0 connectivity for quick, easy setup
• EMC Captiva ISIS Drivers
• Epson Scan software
• Document Capture Pro
ABBYY FineReader Sprint (OCR)
DS-70000 Scanner Specifications
Type: Sheet fed 1-pass duplex scanning;
Hinge: Free stop, 15 mm max lift
Paper Supply: Face up load, face down eject
Scanning Element: Four Line CCD
Light Source: ReadyScan LED
Color, Grayscale, B/W,
Scanning Resolution: 600 DPI optical, 1200 DPI Output
Maximum Scan Area: 11.7" x 100" with ADF, Flatbed 11.7" x 17"
ADF Capacity: 200 pages (75 g/m2)
Document Sizes: A4, Letter, Legal, B5, A5,
Max. Size: 11.7" x 100" (ADF) 11.7" x 17" flatbed,
Min. Size: 2.7" x 4.7" (ADF)
Paper Weight: 9 to 33 lb.
less than 4" x 6": 16 to 49 lb.
Interface: USB 2.0 (Cable included)
3 year Next Business Day Replacement
Scanning Speed:200 dpi
- B/W: Up to 70 ppm / 140 ipm with ADF
- Color: Up to 70 ppm / 140 ipm with ADF
ISIS/TWAIN Drivers: XP/Vista/Win7/Win8,Win10
Mac OS® 10.5.x-10.10.x
(W x D x H): 25.2" x 18.5" x 11.3"
Weight: Approx. 59.5 lb.
Power Consumption: Maximum 26 W or less. 1.6 W in Energy Saving Mode
OPTIONS: Network Module, Roller Assembly kit,
Bundled Software: (On CD)
• ISIS/TWAIN Drivers
• Epson Scan
• Document Capture Pro
ABBYY FineReader Sprint
Epson Scanner Accessories
Download the Network Module Brochure (15 pages) PDF
Epson Warranty Options
This scanner comes with a 3 year NBD warranty.
