HP ScanJet Pro 4500 fn1 Network Scanner
Specifications
Scanner type
Color, sheet feed with flatbed
Scanner Technology
CMOS CIS (Contact Image Sensor).
Light Source: LED
Scan resolution
Hardware: Up to 600 x 600 dpi; Up to 1200 x 1200 dpi
Optical: Up to 600 x 600 dpi; Up to 1200 x 1200 dpi
Daily duty cycle
Up to 4000 pages
Bit depth
24-bit/ 256 Greyscale levels
Flatbed scan area
8.5"x11.5 "
Multifeed detection
Yes, length
Automatic document feeder capacity
Standard, 50 sheets
Automatic document feeder speed
Up to 30 ppm/60 ipm. OCR A4 (8.5 x 11 in) text page (ADF, 300 dpi, B/W, RTF): 6.37 sec for single image scan. 1.84 sec for single image save; OCR A4 (8.5 x 11 in) text page (Flatbed, 300 dpi, B/W, RTF): 7.8 sec for single image scan. 1.62 sec for single image save.
Scan File Format
For text and images: PDF, JPEG, PNG, BMP, TIFF, Text (.txt), Rich Text (rtf) and Searchable PDF.
Scan size, maximum (ADF)
Maximum: ADF: 8.5 x 122 in;
Flatbed: 8.5 x 14 in;
Minimum: ADF: 4.1 x 5.8 in;
Flatbed:1 x 1 in
Scanner Advanced Features
Blank page removal; Auto orientation; Auto color detect; Auto crop; Auto exposure; Hole removal; Straighten content; Erase edges; Clean up background; Auto threashold; Color drop out; OCR
Scanner Input Modes
Scan front-panel function for Save as PDF, Save as JPEG, E-mail as PDF, E-mail as JPEG, Send to Cloud, Everyday Scan and Save as Editable Text (OCR). HP Scan in Win OS, HP Easy Scan/ICA in Mac OS and thrid parties applications via TWAIN. 2.8-in (7.11-cm) Touchscreen, Buttons (Back, Home, Help). Digital sending on touchscreen, Wi-Fi included, legal size flatbed
Output Resolution Settings
75; 150; 200; 240; 300; 400; 500; 600; and 1200 dpi
Media Types
Paper (banner, inkjet, photo, plain), envelopes, labels, cards (greeting, index)
Media Weights
12 to 32 lb (45 to 120 g/m²) (ADF only)
Media Sizes
Letter; Legal; Executive; A4; A5; A6; B5; B5 (JIS)
Twain Version
Certified, version 2.1
Connectivity, standard
Standard: USB 3.0 (Super Speed); Built-in Fast Ethernet 10/100/1000 Base-TX network port.
External I/O Ports
USB 3.0 (Super Speed); Built-in Fast Ethernet 10/100/1000 Base-TX network port
Network Ready
Build-in Ethernet, Wi-Fi 802.11 b/g/n
Memory/Processor
Memory: 1GB, Processor 550 MHz
Minimum system requirements
Windows 7 or higher; 2 GHz processor, 2 GB RAM, 170 MB hard disk space (driver-only install); USB 2.0, 1024 x 768 SVGA monitor
Compatible Operating Systems
Win 7 or higher; Mac: OS X El Capitan 10.11 or higher
Power and Operating requirements
Power consumption
Power Supply Type: External power adapter; Power Requirements: Input Voltage: 100 to 240 VAC; Power Consumption: 6.11 watts (Ready), 1.35 watts (Sleep), 0.05 watts (Auto-Off), 0.05 watts (Off)
Energy Star® Certified
Yes
Operating temperature range
50 to 95°F; Recommended Operating Temperature: 50 to 95°F; Storage Temperature Range: -40 to 140°F; Non-Operating Humidity Range: 0 to 90% RH (non-condensing); Operating Humidity Range: 15 to 80% RH (non-condensing); Recommended Humidity Operating Range: 15 to 80% RH (non-condensing)
Product dimensions
(W x D x H)
W x D x H: 20.5 x 15.2 x 5.7 in;

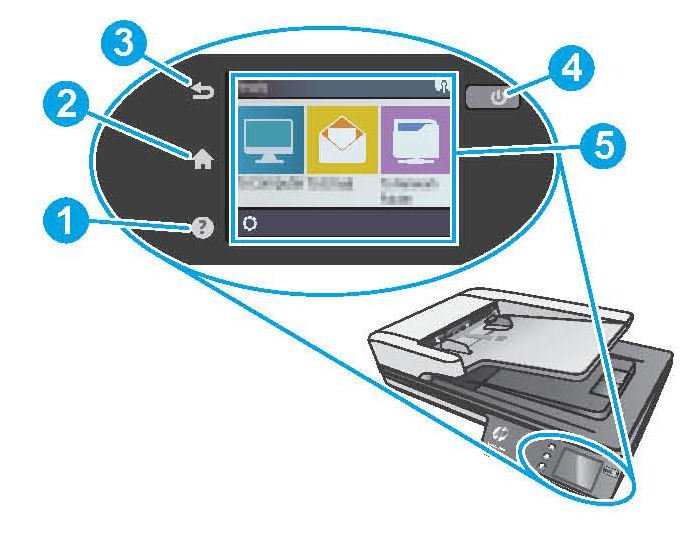

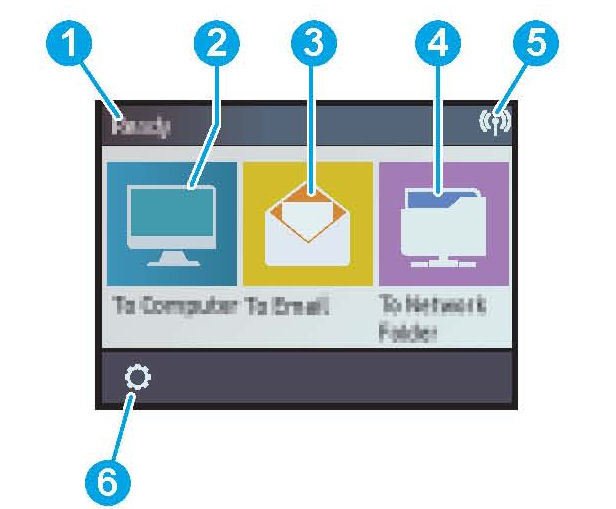

Control Panel
2.8-in (7.11-cm) Touchscreen, Buttons (Back, Home, Help)
Warranty
One-year limited hardware warranty, phone and web support; optional services. Please go to https://www.hp.com/support for more details.
Cable included?
No LAN Cable, please purchase LAN cable separately
What's in the box
L2749A HP ScanJet Pro 4500 fn1 Network Scanner; Install guide; HP Scan Software Driver CD; HP Bonus Pack Software CD; Supporting flyers; Cushions; USB cable; Power adaptor; Power cords
Software included
HP Scanner Device Driver; HP WIA scan driver; HP TWAIN scan driver; HP Scan;HP Scanner Tools Utility; HP Windows Installer; I.R.I.S. Readiris Pro; I.R.I.S. Cardiris; Nuance PaperPort; ISIS driver; Kofax VRS; DXP
