WideTEK 36 CL-MF
36 Inch Large Format Scanner


A 36 inch width scanner with 21 inch touchscreen above for easy operation.
WideTEK 36CL-MF Scanner
  • Scan to USB drive
  • Scan to network folder
  • Scan to cloud
  • Scan to printer (Canon,Epson,HP,etc.)
No PC needed for operation.

WideTEK 36 CL-MF
36 Inch Large Format Scanner

  • Scans 36 inch widths, unlimited length
  • Color scans at 10 inches per second
  • B/W scans at 15 inches per second
  • Uses its own internal PC to scan
  • Automatic crop and deskew
  • On the fly rotation
  • Modify images without rescanning
  • High Quality 1200 dpi CIS cameras
  • 21" TouchScreen Monitor

Start Scanning to day for only
$5690

Click here for purchase options

free shipping

Watch the 5 minute video
This is the previous generation video, the media catch basket was also redesigned

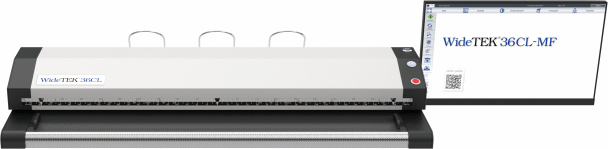

WideTEK® 36CL-MF Color Scanner

A true standalone system at the lowest possible price

The WideTEK® 36CL-MF is by far the fastest color CIS scanner on the market, running at 10 inches per second at 200 dpi in full color. At the full width of 36" and 600 dpi resolution, the scanner still scan at 1.7 inches per second. The scanning speeds in black and white and greyscale modes are 15 inches per second. Additionally, the speeds can be individually configured if needed, to scan fragile, valuable documents.

All of these speeds are guaranteed, due to the Scan2Net® technology integrated in the scanner´s own built in 64 bit Linux PC. It is a true standalone system capable of scanning directly to FTP servers, hot folders, USB drives, to cloud applications in the internet or copying to printers directly, without the need for an extra PC.

Scan your documents three times faster and enhance the file in
AutoCAD, ESRI and other document workflows

The WideTEK® 36CL-MF handles documents up to 38 inches wide with a maximum scanning width of 36 inches. The scanner is a standalone system, which is capable of scanning to FTP servers, hot folders, USB mass storage devices, cloud applications on the Internet or copy directly to a printer without an additional external PC.

Extraordinarily Sharp Images

The WideTEK® 36CL produces extraordinarily sharp images, with color accuracy even superior to competing CCD scanners. Document rotation is done on the fly, a scan of an E-sized / A0 document in portrait mode at 300 dpi in 24-bit color takes less than 7 seconds to scan and another 2 seconds to crop, deskew, preview and store.

21" Touch Screen

The 21 inch color touchscreen provides access to all functions directly from the scanner. The touchscreen is very easy to access and is operator-friendly since its attached to the scanner and tilts so the operator can stand or sit while scanning.

You can also choose to not mount the 21" monitor and control the scanner (remotely) through a PC with it's own monitor and keyboard. The scanner is connected via a ethernet cable to a network. You then launch a browser on a networked PC and control the scanning operation through the browser on your PC, just like you would with a network printer.

Stainless Steel Paper Guide
stainless steel guide close-up

The paper guide consists of only one piece which includes the scanning bed, scanning area and the exit path. There are no edges or catches which could cause a paper jam. The suface is textured for trouble free transport and the stainless steel makes for an anti-static surface that's long lasting too.

Place it above your printer
WideTEK36CL-MF

You can purchase the WideTEK36CL-MF without the stand and place the scanner on top of your printer. Shown left with the CL-MF mounted on a Canon TX-3100 36" printer.

Mounting brackets for various brands and models are optional, call for pricing.

Key Features
  • Scans 36 inch widths, nearly unlimited length
  • Fastest color scanning at 10 inches per second (15 m/min) @ 200 dpi
  • 1200 x 1200 dpi scanner resolution
  • Automatic crop and deskew
  • On the fly rotation while scanning facilitates postprocessing
  • Face up scanning
  • Modify images without rescanning
  • Standalone device with its own Linux PC
  • Scan2Print -- Copy to networked printers or hot folders
  • Scan2Network -- Output to network resources, SMB, FTP
  • LED lamps, no warm up, IR/UV free
  • Large color 21" touchscreen for simplified operation
  • User interface configurable in many languages
  • Virus resistant Linux OS
  • OS independent, runs with Windows 7, 8, 10, Linux, Mac
  • ScanWizard uses any browser: IE, Safari, Chrome, Firefox
  • Remote maintenance and troubleshooting
  • Firmware updates via web interface
  • Dust-free camera technology
  • Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
Options
  • Adjustable Stand-From 34.5 to 44.5" in height.
  • Batch Scan Wizard -- Software option for high volume scanning and indexing
  • Scan2OCR -- Software option for scanning and OCR processing in a single step
  • Foot Switch -- Hardware option for batch scanning
  • Mounting brackets for mounting on top of large format printers
  • TWAIN Interface -- Software interface option
  • Full Coverage Warranty Options up to 5 years
  • Transparent document carriers for fragile document handling, available in: A0 and A1
CL-MF Models
No Stand, mounts on top of printer:
  • The CL-MF1 is for atop Canon TX and PRO printers
  • The CL-MF5 is for atop Canon TM-300 printers
  • The CL-MF6 is for atop Canon PlotWave printers
With Stand, stands alone:
  • The CL-MF2 is for most Canon ImagePROGRAF printers
  • The CL-MF3 is for HP Designjet printers
  • The CL-MF4 is for Epson SureColor printers
