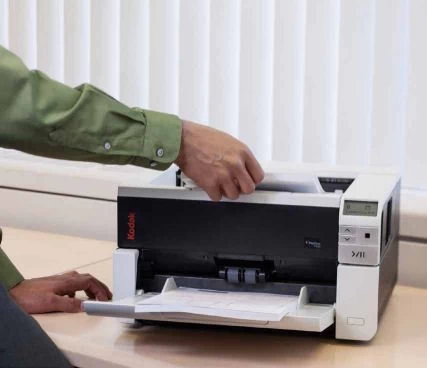

Kodak i3500 Scanner
Specifications
Throughput Speeds
(landscape, letter size,color or B-W)
i3200: Up to 50 ppm/100 ipm at 300 dpi
i3300: Up to 70 ppm/140 ipm at 300 dpi
i3400: Up to 90 ppm/180 ipm at 300 dpi
i3500: Up to 110 ppm/220 ipm at 300 dpi
Scanning Technology
Dual CCD; Grayscale output bit depth is 256 levels (8-bit)
Color capture bit depth is 48 bits (16 x 3);
Color output bit depth is 24 bits (8 x 3)
Illumination
Dual indirect LED (light emitting diode)
Operator Control Panel
Graphical LCD Display with four operator control buttons
Feeder/Elevator
Up to 300 sheets of 20 lb. paper
i3500 only
Optical Resolution
600 dpi; 1200 dpi (A4 Flatbed Accessory)
Output Resolution
75, 100, 150, 200, 240, 300, 400, 600 and 1200 dpi
Paper Path Options
Documents can exit into the front output tray, or at the rear of the scanner if the straight-through paper path option is manually selected
Max/Min Document Size
(auto feed mode)
12 in. x 34 in / 2.5 in. x 2.5 in.
Max/Min Document Size
(manual feed mode)
12 in. x 34 in / 2.0 in. x 2.0 in.
(paper exits to rear of scanner)
Long Document Mode
up to 12.0" x 160" continuous feed.
Paper Thickness and Weight
9-110 lb. paper
Consumables available
Feed module, separation module, feed rollers,
roller cleaning pads, Staticide Wipes
Multi-feed Detection
With ultrasonic technology
Connectivity
USB 2.0 (3.0 cable included)
(works with either USB 2.0 or 3.0 PC's)
Bundled Software
TWAIN, ISIS, WIA Drivers; KODAK Capture Desktop Software; Smart Touch; (LINUX SANE and TWAIN drivers available from download
Imaging Features
Perfect Page Scanning; iThresholding; adaptive threshold processing; deskew; aggressive crop; relative cropping; electronic color dropout; dual stream scanning; enhanced color management; enhanced color adjustment; brightness and contrast adjustment; automatic orientation; automatic color detection; background color smoothing; intelligent image edge fill; image merge; content-based blank page detection; streak filtering; round/rectangular hole fill; sharpness filter; auto brightness;toggle patch;auto photo cropping; segmented bitonal images; long document scanning (up to 160 in.)
File Format Outputs
Single and multi-page TIFF, JPEG, RTF, BMP, PDF, searchable PDF
Warranty
(US and Canada)
Ninety Day Warranty
Accessories
Document imprinting accessory (rear-side, post-scan imprinting of up to 40 alphanumeric characters, with 11 imprinting positions);
Optional Legal size flatbed accessory
Electrical Requirements
100-240 V (International); 50-60 Hz
Power Consumption
Sleep mode: <4.5 Watts; Running: <75 Watts
Environmental Factors
Energy Star qualified scanners
Operating temperature: 15-35° C (59-95° F)
Operating humidity: 15% to 76% RH
Recommended PC Configuration
Intel Core i7, 3.4 GHz processor or higher, 4 GB RAM or higher, USB 2.0 (Windows and Linux)
Supported Operating Systems
Windows 10 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit, WINDOWS VISTA SP2 (32-bit and 64-bit), WINDOWS 7 SP1 (32-bit and 64-bit), UBUNTU 10.04.1,
Acoustical Noise
Off or Ready mode: <40 dB(A)
Operating mode: <60 dB(A)
Dimensions
Weight: 35 lbs.
Depth: 14.6 inches (tray closed)
Width 17 inches
Height: 9.4 inches
Warranty
3 Month Advanced Exchange
