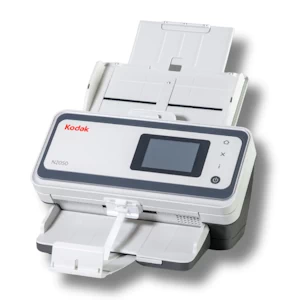

N2000 Series Specifications
Throughput Speeds*
(portrait, letter size)
Bitonal/grayscale/color @ 200 OR 300 dpi
- N2040: 40 ppm/80 ipm
- N2050: 50 ppm/100 ipm
Daily Duty Cycle
Recomended by Manufacturer
- N2040: 6,000 pages per day
- N2050: 8,000 pages per day
Scanning Technology
Dual CIS;
Grayscale bit depth is 256 levels (8-bit)
Color capture bit depth is 30 bits (10 x 3);
Color output bit depth is 24 bits (8 x 3)
Operator Control Panel
3.5-inch color LCD
Optical Resolution
600 dpi
Illumination
Single LED (light emitting diode)
Output Resolution
75, 100, 150, 200, 240, 250,260, 300, 400, 600, 1200 dpi*
Maximum Document Size
8.5 in. x 120 in.
Minimum Document Size
2.05 in. x 2.05 in.
Paper Thickness and Weight
(7.2 lb. bond paper - 160 lb. stock)
ID card thickness: up to 1.25 mm (0.05 in.)
Consumables available
Roller Kit, Carrier Sleeves, Legal flatbed, Passport flatbed
Multi-feed Detection
With ultrasonic technology
Intelligent Document Protection
Connectivity
USB 3.2, 10/100/1000 ETHERNET
Bundled Software
TWAIN, ISIS, WIA Drivers; Smart Touch; Kodak Capture Pro Software LE (web download)
Data Security
This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down.
Network Protocols
DHCP (or static IP), TCP/IP
Imaging Features
Barcode reading; Perfect Page Scanning; iThresholding; adaptive threshold processing; deskew; autocrop; relative cropping; fixed crop; add/ remove border; electronic color dropout; dual stream scanning; enhanced color management; enhanced color adjustment; brightness and contrast adjustment; automatic orientation; automatic color detection; background color smoothing; intelligent image edge fill; image merge; content-based blank page detection; streak filtering; round/rectangular hole fill; sharpness filter; auto brightness; auto white balance; all-color dropout; multi-color dropout; long document scanning (up to 120 in.)
File Format Outputs
BMP / JPEG / TIFF / Multipage TIFF / PDF/A-2b / PNG / RTF / XLSX / DOCX / PPTX
Warranty
(US and Canada)
Three-year warranty
Accessories
A4/legal size flatbed, Passport flatbed, Capture Pro Software -Pro version.
Electrical Requirements
100-240V (International); 50-60 Hz
Power Consumption
Standby mode: less than 0.5W; Sleep: less than 3.2W; Running: less than 36W
Environmental Factors
EPEAT Registered ENERGY STAR Qualified Operating Temperature: 10-35° C (50-95° F) Operating Humidity: 15% to 80% RH
Acoustical Noise
Off or Ready mode: Less than 20 dB(A)
Scanning: Less than 50dB(A)
Recommended PC Configuration
Minimum PC configuration with scanning application:
Intel Core i3 processor or faster, at least 4 GB RAM (Microsoft Windows)
Supported Operating Systems
Windows 10/11, Windows Server 2016/2019/2022, LINUX (Ubuntu), Citrix
Dimensions
Weight: 7 lbs.
Depth: 10.75 inches including tray
Width 12.1 inches
Height: 9.2 inches including tray
* Throughput speeds may vary depending on your choice of driver, application software, operating system and PC.
