Contex SD One MF 44 Inch
Large Format Scanner

Contex SD One MF Scanner
Shown with $650 Optional Stand.

SD One MF 44"

Includes $200 Firmware Activation License

Scan speed @ 300 dpi: 1.9 inches per second

Scanner Only
Stand not included

Buy now button

Request Quote

Lease purchase financing with monthly
payment plans available. Details here..

MPN: 5300D505003A

Free Shipping (except to West Coast States.)

An activation license can cost between $200 to $4,500, depending on the model.

Contex SD One MF 44" Features

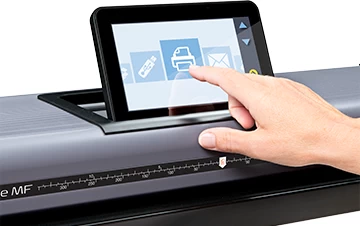

Contex always strives to give you more: More details, more features, more possibilities and more quality! In our new large format scanner, SD One MF, we have compressed all our knowledge into one easily operated device. The SD MF large format scanner is equipped with a touchscreen the size of a tablet PC. This enables you to operate, edit, annotate, mark-up, file, and share your scans to optimize your workflow.

This scanner does NOT scan directly to a PC via USB cable.

You use the MF controller and scan to a network location via the ethernet port. You must have a "network" to be able to use the scanner. The software comes installed on the controller (Also means that you do not need a PC to run it). The software on the controller has VERY limited capabilities. If you want to do batch scanning, auto-file naming or image editing, you'll need to purchase the NextImage Scan & Archive software upgrade and install that software on a PC and run the scanner over the network.

Fully Integrated
SD One MF is a powerful standalone scanner that is also as tightly integrated with your printer as an all in one machine. All the benefits. None of the drawbacks.
Contex SD One MF Scanner
Personlize Your Scanner

Centered around you, not your scanner. Individual user profiles allow easy use by the entire team. Set up once, remember forever.

Scan direct to project folders

SD One MF remembers your preferences and scans direct to your saved project folder or mobile platform through integrated Cloud support. One click scanning is now at your fingertips.

Lightweight and Transportable

Many businesses find it convenient to be able to move their scanners around the office, close to archiving equipment or printers, for example. The compact, lightweight SD One MF fits into small spaces, is very easy to transport, and can be shared across you network, so you can use it from any location. 24" Weighs 19 Lbs. 36" Weighs 25 lbs.

Stand Options

SD One MF can be positioned to support your needs. Place it beside the printer on a low stand for full accessibility; position on a high stand, or sitting directly on the printer to save space. Your choice.

Contex SD One MF Scanner
Secure scanning

Protect your data. Log in with your PIN each time you scan. (optional setting)

WiFi Enabled

The only WiFi enabled wide format scanner. WiFi compatibility
makes SD One MF easy to both set up and use.

Choose your printer

HP, Canon and Epson native printer drivers are included as standard.

Mark-up directly on the scanner

Save money on ink and media.No need to print before you mark-up your document. With a touchscreen the size of a tablet PC, you can make changes to your document right on your scanner. Ready to share or save.

Cloud Connected

Integrated Cloud support enables collaboration with clients and partners, as well as internal colleagues.

Common Specifications
for the SD One MF Series

Maximum Scan Width/
Max. Media Feed Width
SD One MF 24: 24/26.6"
SD One MF 36: 36/38"
SD One MF 44: 44/47.2"
Maximum Scan Length
Optical Resolution
600 dpi
Maximum Resolution
9600 dpi (software interpolated)
Maximum Media Thickness
0.03 in. or .75 mm
0.1% +/- 1 pixel
Data Capture (color/mono)
Color Space
sRGB (24 bit) Grayscale (8 bit) Monochrome (1 bit)
Scan to USB key
Yes, USB 3.0 (does NOT scan directly to a PC via USB data cable.)
File formats
USE / Requirements
33W – ENERGY STAR compliant
Weight & Dimensions LxWxH
MF 24: 32.2 x 8.9 x4.9 inch - 21.1 lbs.
MF 36: 45.8 x 8.9 x4.9 inch - 27.2 lbs.
MF 44: 53.1 x 8.9 x4.9 inch - 31.1 lbs.
In the Box:
Scanner (24", 36" or 44" model), 6' Ethernet cable, external power supply, installation guide, calibration poster, calibration sheet and cleaning cloth.
2-year warranty parts replacement

Embedded Controller

7" multi-touch Screen. 800 x 480 pixels
Atom Quad-Core
Memory (ram / flash)
8 GB / 16 GB
Network PCs, Cloud, email, copy and USB
File Formats (Scan to USB)
Supported Printers
Selected network HP, Canon and EPSON wide format printers.
Supported Printer Heights
From 33.5 to 47.3 inches in about 2 inch increments)
Supported OS
Windows 10, Windows 8.1-32 and 64-bit,
File Formats (Cloud and file)
Cloud Destinations
Dropbox, Google Drive, Microsoft Sky Drive,
Wireless (IEEE 802.11b,g,n)
up to 150Mbps / Gigabit Ethernet
Country of Origin
Designed in Denmark, manufactured in China
2-year warranty parts replacement
What's in the box
Scanner (24", 36" or 44" model), 6' Ethernet cable, external power supply, installation guide, calibration poster, calibration sheet and cleaning cloth.

SD One MF Scanning Speeds

Scanning Speed* (inch/sec.):
Scanner speed while scanning 36-inch wide document.
150 dpi Color/Monochrome
3.8 Inches per second
300 dpi Color/Monochrome
1.9 Inches per second
600 dpi Color/Monochrome
1.0 inches per second

SD One MF Stands for
the 24, 36 and 44" models

Low Adjustable Stand
for the 24" model
Your Price
Low Adjustable Stand
for the 36" model
Your Price
Low Adjustable Stand
for the 44" model
Your Price
SD One Plus Stand

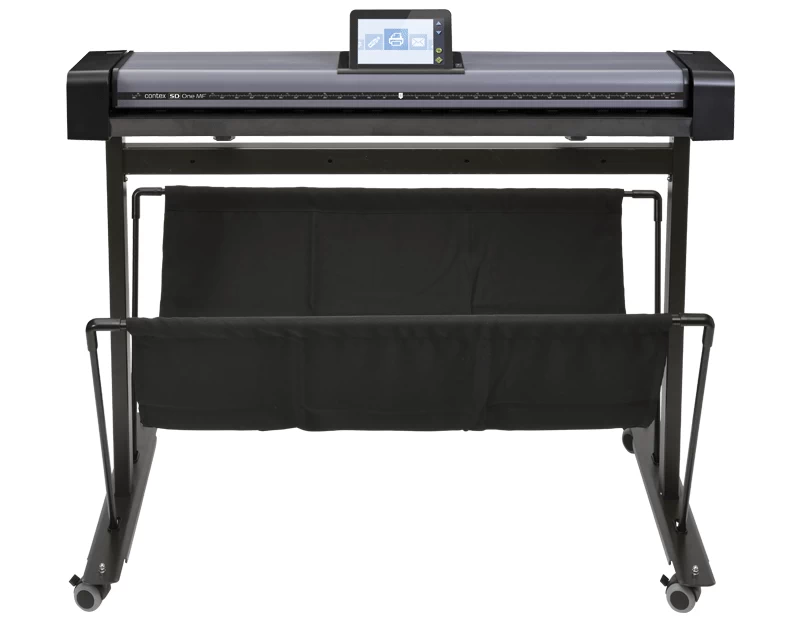

The above photo is a MF 36" resting on a Low Adjustable Stand,
which comes with a Document Catch Basket

Nextimage Software

The FREE version of NextImage is included on the MF controller. This version has limited features. Based on our customer purchase history, we suggest you consider upgrading to the full version to meet your scanning needs: Click here to compare the differences between the versions

You will need to install this on a PC, and run the scanner across your network. You will NOT use the controller.
Scan + Archive

Scan, Batch Scan, Image Adjustment Control
(Digital Download only)
List Price

Buy now button

Warranties for the SD One Plus Series

For the SD Series, the models include a 2 year Parts Warranty where you fix the scanner yourself, but the parts are free. You can upgrade to a Two Year On site Warranty where Contex will fix it on site for you.

Your Price

add to cart button

(has closeups of screen & editing too)
