Contex HD Ultra X 6090

60 Inch Large Format Scanner

World's fastest CCD Camera Large Format Scanner!

Scans at up to 17.8" Inches Per Second (IPS)

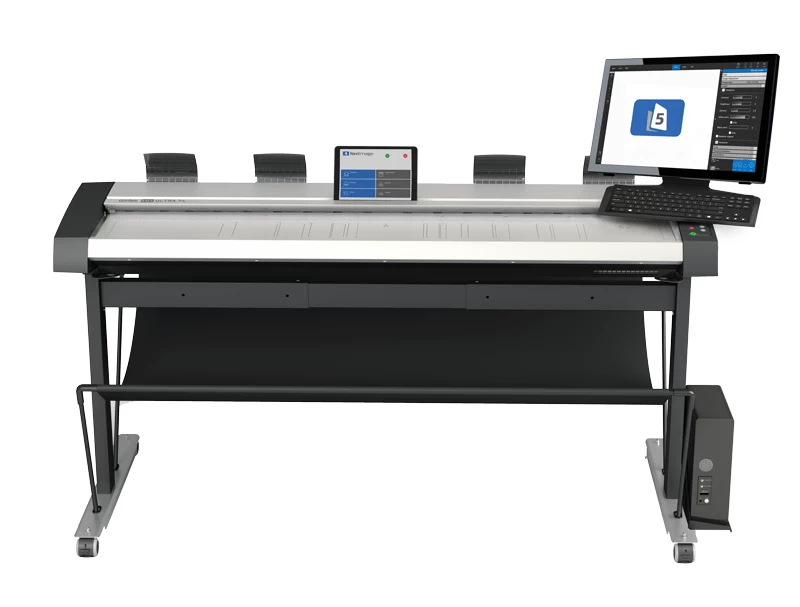

HD Ultra X 6090

Shown with ScanStation Pro Kit

Contex HD Ultra X 6090
60 Inch Scanner

Our Bundles include the
Firmware Activation License


free shipping

Lease purchase financing with monthly
payment plans available. Details here..

Call ScanTastik @ 1-800-977-4935 if you need a formal quote
or use our Request A Quote form

HD Ultra X 60 Inch Scanner Features

Select a 60 inch scanner that
can take up to A0+ / E-size+ landscape documents

With uncompromising image quality standards, the Contex HD Ultra X 6000 Series scanners are designed for high-volume productivity for businesses-critical imaging tasks. Whether you are a private business, government or print-for-pay, an HD Ultra X 6000 scanner is the right solution for improved efficiency and productivity.

Wide and long ...

Artwork, maps and other color- and detail-rich documents are reproduced to perfection, without any document length limit. You don’t have to scan the material in several parts and then stitch the images together afterwards. You have a consecutive processing of any number of scans, and software settings you can personalize to ensure the same scan, copy and color settings every time.

Proven Technology

A combination of 48-bit color, 4-channel CCD technology, full-size professional camera lenses and advanced image data processing algorithms creates a superior image quality. With image processing performed inside the scanner, your PC is free to run software applications more efficiently. The Contex HD Ultra X 6000 wide format scanner is fast and steady with up to 17.8 inch/second scanning speeds. Truly a workhorse that can handle very large originals with speed and ease. The HD Ultra X gives you a great performance and a high return on your investment.

Various media and thickness

Do you have thick, mounted or other sensitive or specialized documents? No problem. Optimized Thickness Adjustment Control (OTAC) technology lets you adjust the scanner to scan documents up to 0.6“ (15 mm) thick and monitors pressure on the document surface. The Ultra X Series scanner will also detect the width of you document too.

Key features
  • 60 inch ultra-wide design captures oversized documents easily
  • 48-bit color and 16-bit grayscale image data capture from 4-channel CCD technology with lenses from Fujifilm
  • Exceptional ultra wide productivity, scanning over 1,000 Arch E-size color documents per hour
  • Scan-to-Net function for scanner sharing over a network, and sending files to remote PC’s
  • All Wheel Drive (AWD), a precision paper feed tracking system, ensures a perfectly straight scanning path and distortion-free scans
  • Includes 2 year parts warranty, upgradable to onsite.

Contex HD Ultra X 6090 Scanner
60 Inch Wide Format Scanner

HD Ultra X 6090 model*
Speed
B/W: 17.8 IPS
Color: 17.8 IPS
Your Price
$19,590
scanner/stand/software included in bundle.
Low adjustable stand for 60 Inch Scanner
List Price
$1040

included in bundle
Nextimage
Scan & Archive Software

Scan, Batch Scan, Image Adjustment Control
List Price
$650
included in bundle
Nextimage
Reprographics Software

Batch Scan, Scan to Copy, Scan Accounting by Job
List Price
$1295
If you would like to have a 21.5" Touch Screen Monitor and keyboard setup
please look at the ScanStation Pro version

Request Quote
MPN: 6700G504

Professional Services
Installation & Training
Remote
Includes 2 hours of Remote Installation and Training. Additional training time available.
  • Scanner, Stand Assy.
  • Software Installation and Licensing
  • Scanner calibration
  • Software training
  • Scanner Maintenance
Your Price
$495
add to cart button
Onsite Installation and Training is available, please call for a quote.

Common Specifications
for the HD Ultra X 6000 Scanners

Maximum Scan Width
60 inch
Maximum Media Width
62 inch
Optical Resolution
1200 dpi
Maximum Resolution
9600 dpi
Maximum Media Thickness
0.6 inches (15mm)
Camera Type
5 x 4 linier color CCDs (R,G,B and Gray)
Accuracy
0.1% +/- 1 pixel
Scanning Speed
200 DPI RGBColor
6050: 8.9 Inches Per Second
6090: 17.8 IPS
Scanning Speed
200 DPI Black/White/Grayscale
6050: 17.8 IPS
6090: 17.8 IPS
Data Capture (color/mono)
48-bit/16-bit
Color Space
Adobe RGB, Device RGB, RAW RGB, sRGB
Interface
USB 3.1 GEN1 with xDTR
Gigabit Ethernet
Network workflow
Pull / Push
Key Technologies
FlexDoc, FlexFeed, SnapSize, SmartShare, ALE (Accuracy Lens Enhancement), AccuColor, OTAC, Perfect Light, Static Free Touchless Glass System
Software
WIDEsystem (driver): Nextimage 5 iOS app (portable device)
Android tablet/phone OS also
File formats
Big TIFF, TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, multi-page PDF and others
Device Drivers
Windows 10, Windows 8.1-32 and 64-bit,
Nextimage, TWAIN
64-bit TWAIN application driver included for use with EDM and other imaging software
Power
110/220/240V, 60/50Hz, 80w
Weight & Dimensions
LxWxH
173.8 lbs, 71.2 x 21 x 11.0 inches
Certifications/compliance
RoHS, cUL, CE, Customs Union, CCC, VCCI, KC, Ukr, ENERGY STAR certified
TAA compliance
TAA compliant scanners are for US customers only and are assembled in Denmark UPON REQUEST
*Scanning speeds depend on document width and computer configuration
Contex recommends Intel Core Duo, Core 2 Duo,or better processors, 8GB RAM + Fast-disk. Speed tests performed using Nextimage software, PC with Intel Core i7 4770K 3.5 GHz ,16 GB RAM, SSD - 1TB, USB 3.0 SuperSpeed and Win 64-bit.
Professional Services
Installation & Training
Remote
Includes 2 hours of Remote Installation and Training. Additional training time available for $120 per hour.
  • Scanner, Stand Assy.
  • Software Installation and Licensing
  • Scanner calibration
  • Software training
  • Scanner Maintenance
Your Price
$495
add to cart button

Nextimage Software

(This software is required to operate the scanner, choose your version below:)

SOFTWARE is NOT included with the scanner because there are two different types of software you may prefer to purchase, based on the type of scanning you will do.

Click here to read about the differences between the two

Choose ONE of the two software versions below to run your scanner:
Nextimage
Scan + Archive

Scanning, Batch Scanning,
Image Editing, Image Adjustment Control
(Digital Download only)

List Price
$650
Buy now button
Nextimage
Repro Software

Scan + Archive, Scan to Copy, Client Batch Accounting
(Digital Download only)

List Price
$1295
Buy now button

Stand for the HD Ultra X 6000 Series

6000 Series Stand
(includes document basket)

Sale Price
$1040

saleprice button
HD ultra X Low Stand

Warranties for the HD Ultra X Series

The Ultra X Series includes a 2 Year Parts Warranty. The parts are free, but you must repair the scanner yourself. If you would like a Contex certified technician to come onsite and repair your scanner, you should upgrade to a Two Year Onsite Warranty.

Contex 2 year Onsite Warranty Upgrade
Price
$2350
