Contex SD One Plus
36 Inch Large Format Scanner


contex large format scanner

Shown with OPTIONAL stand
($650)


SD One 36" Scanner
Includes Firmware Activation License

Scan speed @ 300 dpi: 1.9 inches per second

Your Price
$3250
(Optional Stand $650)

Sale Price button

Request Quote

Free Shipping
(except to West Coast States.)

5300D012006

SD One Plus Series Features

The Contex SD One Plus is a desktop large format scanner with strong features. Save space and time scanning oversized engineering and construction drawings in-house.
As-builts, documentation and rebuilt
All projects include numerous design documents and continuous changes. With SD One Plus you capture and document changes and as-builts.
Space-saving design and light weight
SD One Plus’s lightweight and compact design it is a must-have scanner for any office that wants to share and move a scanner between multiple users or store it when it is not required.

Capture all you document types
Scan and document all your engineering or construction plans in standard file formats directly into your project folders. .
Lightweight and Transportable

Many businesses find it convenient to be able to move their scanners around the office, close to archiving equipment or printers, for example. The compact, lightweight SD One Plus fits into small spaces, is very easy to transport, and can be shared across you network, so you can use it from any location. 24" Weighs 19 Lbs. 36" Weighs 25 lbs.

Grows with your business
Another great advantage is upgradeable speed and resolution. That means your scanner can meet all your needs today, and then grow along with your business.
Key Features
  • Up to 600 dpi resolution scanning
  • Compact, lightweight design
  • Nextimage FREE Version Included. Upgradable to Scan+Archive or Repro versions (Free version does not have batch scanning mode)
  • All-Wheel-Drive (AWD) for a perfect grip on your documents
  • SmartShare function for scanner sharing across a network, and sending files to remote PCs
  • One-touch scanning
  • ENERGY STAR compliant, using less than 4W in standby mode

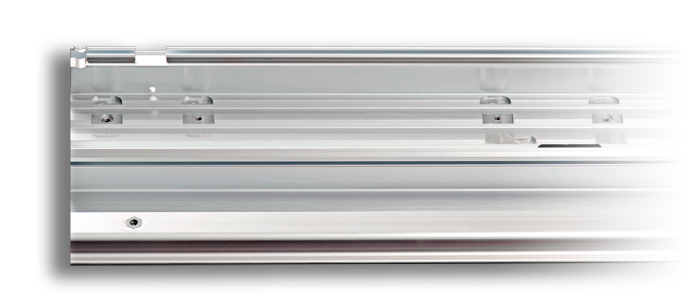

Unibody CIS Technology

Contex patented Unibody CIS technology, a unique image-capture design, based on a single aluminum extrusion and custom CIS modules ensuring market leading accuracy in every image.

Fast Data Transfer Rates with xDTR

Contex scanners with xDTR improve overall productivity by increasing the data transfer speed of the USB interface, so more image data can be sent to the PC, faster. This means larger documents (and more documents) can be scanned at higher resolutions without waiting for data transfer to complete. A scanner without xDTR may capture an A2 or C-size color document in eight seconds, while a scanner with xDTR can capture an A1 or D-size color document in the same time, or less. If scanning batches of documents or scanning at 400 dpi or more, the difference is even greater.


SD One 36

SD One Plus 36" scanner shown with optional stand.

Common Specifications
for the SD One Plus Series

Maximum Scan Width
SD One Plus 24: 24"
SD One Plus 36: 36"
Maximum Scan Length
50"
Maximum Media Width
SD One Plus -24 is 26.6"
SD One Plus -36 is 38"
Maximum Media Thickness
0.03 in. or .75 mm
Maximum/Optical Resolution
600/600 dpi
Scan Speeds
150 dpi: 3.8 inches per second
300 dpi:1.9 inches per second
Accuracy
0.1% +/- 1 pixel
Data Capture (color/mono)
48-bit
Color Space
sRGB (24 bit) Grayscale (8 bit) Monochrome (1 bit)
Interface
USB with xDTR
File formats
TIF, JPG, PDF, PDF/A
Device Drivers
32 and 64-bit Windows 10, 8, 7, and Vista
TWAIN
TWAIN drivers available for use with EDM and other imaging software.
Power
USE / Requirements
5W / 0.5W / 14W – ENERGY STAR compliant
110/220/240V,60/50Hz, 16W
Weight & Dimensions
LxWxH
SD One-24: 32.2x9.1x4.9 inch - 18.7 lbs.
SD One-36: 45.6x9.1x4.9 inch - 24.9 lbs.
Certifications/compliance
ENERGY STAR, RoHS, UL, CE, GOST-R, VCCI, FCC: CLASS A
In the Box:
Scanner (24” or 36” model), 6' USB cable, external power supply, basic scanning software (Nextimage FREE), installation software and user guides in PDF on USB flash drive, installation guide, calibration poster, calibration sheet and cleaning cloth.
Warranty
2-year parts warranty with fast, easy parts replacement
*Scanning speeds depend on document width and computer configuration
Contex recommends Intel Core Duo, Core 2 Duo, or better processors, 2GB RAM, Hi-speed USB2.
Speed tests performed using Nextimage software, PC with Intel Core i5-2500 Quad processor, 8GB RAM, Hi-speed USB2, 7200rpm HDD, Windows 7 64-bit Ultimate.

SD One Plus Scanning Speeds

Scanning Speed is the same for both the 24" or 36" models
150 dpi Color/Monochrome
3.8 Inches per second
300 dpi Color/Monochrome
1.9 Inches per second
600 dpi Color/Monochrome
1.0 inches per second

Nextimage Software

The FREE version of NextImage is included with the scanner. The Free version has limited features. Based on customer purchase history, we suggest you consider upgrading to the full version to meet your scanning needs:

Click here to compare the differences between the three versions

Choose ONE of the two full featured versions below to run your scanner.
Nextimage
Scan + Archive

Scan, Batch Scan, Image Adjustment Control
(Digital Download only)

List Price
$650
Nextimage
Repro Software

Scan + Archive, Scan to Copy, Client Batch Accounting
(Digital Download only)

List Price
$1295

Buy now button

Nextimage UPGRADE
From S+A to Repro Version

(Digital Download only)

List Price
$800

SD One Plus Scanner Stand
for the 24 AND 36 models

SD One Plus Stand
for 24" model
Your Price
$650
SD One Plus Stand
for 36" model
Your Price
$650
SD One Plus Stand

For the SD Series, the models include a 2 year Parts Warranty where you fix the scanner yourself, but the parts are free. You can upgrade to a Two Year On site Warranty where Contex will fix it on site for you.

Your Price
$1391
