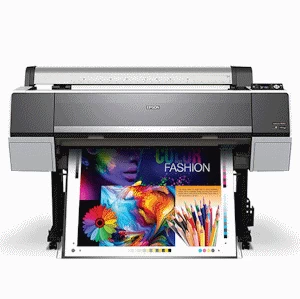

Epson SureColor P8000 Series
44" Wide Format Printer

Minimum cut-sheet size:
8"x10"
Max Print roll: 44"x529"

Left/Right Margins
3 mm each side; 6 mm or 0.24" total

Top/Bottom Margins, Normal
3 mm/15mm

Top/Bottom Margins,Centering On
15 mm each side

Fade Resistance/Print Longevity
Color: up to 200 years; Black-and-white: up to 400 years

Front Top-loading
Auto-loading if less than 0.5 mm thick

Media Thickness
0.8 mm to 1.5 mm

Roll Paper
44" roll, 2" or 3 "Core

Top/Bottom Margin (mm)
Normal: 20/15; option: 35/15, 150/15, 15/15, 3/3

Left/Right Margins
3 mm each side; 0.24" total; or 0" at supported BorderFree® widths

BorderFree Print Widths
110", 11.8", 13", 16", 17", 20.3", 23", 24", 33", 36", 44""

Roll Cutting:
High-speed internal rotary cutter; auto or manual
 Minimum auto cut length 5"
    printable barcode tracking system for roll paper remaining.


Printing Technology:
Advanced PrecisionCore TFP 10-channel, drop-on-demand printhead with ink-repelling coating technology

Minimum Ink Droplet Size:
Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to three different
dot sizes per line

Maximum Print Resolution:
2880 x 1440 dpi

Print Speed: (averaged)
16" x 20"-from 2:02 to 6:58; Production- 4:16
20" x 30" -from 3:40 to 12:25; Production- 7:36
40" x 60" -from 11:15 to 40:05; Production-  24:20


Nozzle Configuration:
Color and monochrome heads;360 nozzles x 10

Printer Language/Drivers
Epson ESC/P® raster photographic drivers standard

Operating Systems
Mac® OS X® 10.7.X or later, Windows® 10, 8.1, 8 and 7 (32-bit,64-bit)

Temperature
Operating: 50˚ to 95˚F (10˚ to 35˚C)
Operating (Recommended): 65˚ to 75˚F
Storage: -4˚ to 104˚F (-20˚ to 40˚C)

Humidity:
Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)

Sound Level:
Operating: Approx 47 dB(A)

Dimensions:
Dimensions: Trays Closed: 73.5" x 26.3" x 48"

Ink type:
 UltraChrome HDX
200 ml Ink Cartridges
9 Colors: Photo Black, Cyan, Vivid Magenta, Yellow, Light Cyan, Light Black, Light Vivid Magenta, Matte Black, Light-Light Black

Warranty
Standard 1-year usually next-business-day on-site repair with
toll-free phone support Monday through Friday. Extended warranties are available.
