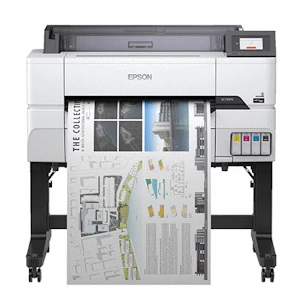

Epson SureColor T3475
Large Format Printer
Specifications
Printable Area and Accuracy:
Border Free Print Widths:
(10.0",11.8",13.0",16.0",17.0",
19.7",20.3", 23.0",24.0")
Minimum Cut-sheet Size:
8.27 x 11 (1 sheet and ASF)
Minimum Paper Width:
Roll: 10"/Sheet: 8.27"
Maximum Printable Length:
Limited by application, OS and driver/RIP used
Sheet Loading:
Auto Sheet Feeder, up to 11" x 17"
Single Sheet, Top-loading:
Up to 24" wide
Left/Right Margins:
0 to 3 mm each (0.24" total)
Single Roll-to-Roll / Top-loading Roll:
Up to 24" wide
Media Core:
2” or 3 " User-adjustable roll media adapters
Maximum Roll Diameter:
Up to 6.6"
Media Thickness:
Up to 11.8 mil
Roll Cutting:
High-speed internal rotary cutter; auto or manual
Roll Paper Remaining:
The amount of remaining paper can be controlled from the control panel
Printing Technology:
PrecisionCore MicroTFP 4-channel, drop-on-demand printhead
Minimum Ink Droplet Size:
4 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Maximum Print Resolution:
2400 x 1200 dpi
Print Speed:
A1/D-sized print: 25 seconds
Nozzle Configuration:
Color and monochrome heads; 800 nozzles x 4 channels
Operating Systems
macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP
Temperature
Operating: 50˚ to 95˚F (10˚ to 35˚C)
Operating (Recommended): 65˚ to 75˚F (18˚ to 24˚C)
Storage: -4˚ to 104˚F (-20˚ to 40˚C)
Humidity:
Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)
Sound Level:
Operating: Approx 49 dB(A);Sleep: Approx 32 dB(A)
Dimensions:
43" x 30" x 42"
Weight:
With Stand: 141 lb
Ink type:
UltraChrome XD2
Ink Cartridges
Black (110mL) T41W520
Cyan (110mL) T41W220
Magenta (110mL) T41W320
Yellow (110mL) T41W420
Black (350mL) T41P520
Cyan (350mL) T441P220
Magenta (350mL) T41P320
Yellow (350mL) T41P420
Black (700mL) T41N520
Cyan (700mL) T441N220
Magenta (700mL) T41N320
Yellow (700mL) T41N420
Warranty
Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday
