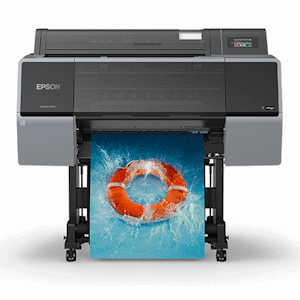

Epson SureColor P7570 Series
24" Wide Format Printer
Minimum cut-sheet size:
8"x10" (Less 3 mm margins)
Max Print roll: 24"x529"
Left/Right Margins
3 mm each side; 6 mm or 0.24" total
Top/Bottom Margins, Normal
3 mm/15mm
Top/Bottom Margins,Centering On
15 mm each side
Fade Resistance/Print Longevity
Color: up to 200 years; Black-and-white: up to 400 years
Front Top-loading
Auto-loading if less than 0.5 mm thick
Media Thickness
0.8 mm to 1.5 mm
Roll Paper
24" roll, 2" or 3 "Core
Top/Bottom Margin (mm)
Normal: 20/15 (Premium Luster Photo Paper);
option: Top 3, 15, 20, 45/Bottom 3, 15
Left/Right Margins
3 mm each side; 0.24" total; or 0" at supported BorderFree® widths
BorderFree Print Widths
10", 11.8", 13", 16", 17", 20", 20.3", 23.4", 24"
Roll Cutting:
High-speed internal rotary cutter; auto or manual
Minimum auto cut length 5"
printable barcode tracking system for roll paper remaining.
Printing Technology:
PrecisionCore MicroTFP 12-channel, drop-on-demand printhead
Minimum Ink Droplet Size:
Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to three different
dot sizes per line
Maximum Print Resolution:
2400 x 1200 dpi
Print Speed: (averaged)
23.4" x 33.1" prints
Normal (BEO:off) 2:02
Normal (BEO: on) 4:04
(BEO=Black Enhance Overcoat)
Nozzle Configuration:
Color and monochrome heads;
9600 nozzles(800 x 12)
Printer Language/Drivers
Epson ESC/P® raster photographic drivers standard
Operating Systems
Mac® OS X® 10.7.X or later, Windows® 10, 8.1, 8 and 7 (32-bit,64-bit)
Temperature
Operating: 50˚ to 95˚F (10˚ to 35˚C)
Operating (Recommended): 65˚ to 75˚F
Storage: -4˚ to 104˚F (-20˚ to 40˚C)
Humidity:
Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)
Sound Level:
Operating: Approx 49.5 dB(A)
Dimensions:
Dimensions: Trays Closed: 55.2" x 26.3" x 48"
Ink type:
UltraChrome PRO12
110 ml Ink Cartridges
12 Colors: Photo Black, Cyan, Vivid Magenta, Yellow, Light Cyan, Gray, Light Vivid Magenta, Matte Black, Light Gray, Orange, Green, Violet
Warranty
Standard 1-year usually next-business-day on-site repair with
toll-free phone support Monday through Friday. Extended warranties are available.
