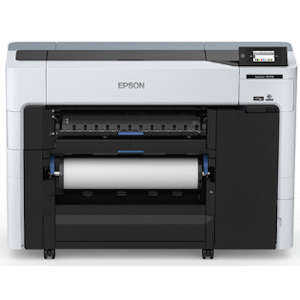

Epson SureColor P6570E Series
24" Large Format Printer
Single Sheet, Front or Rear Loading
Minimum Sheet Width: 8"
Maximum Sheet Width: 24"
Media Thickness:
0.07 mm to 0.8 mm
Posterboard
0.8 mm to 1.5 mm
Left/Right Margins
3 mm each side; 6 mm or 0.24" total
Printable Area and Accuracy
Line Accuracy
±0.1% of specified length (±0.26 mm min.)
Top/Bottom Margins, Normal
3 mm/15mm
Top/Bottom Margins,Centering On
15 mm each side
Fade Resistance/Print Longevity
Color: up to 200 years; Black-and-white: up to 400 years
Front Top-loading
Auto-loading if less than 0.5 mm thick
Media Thickness
0.07 mm to .8 mm
Roll Paper
24" roll, 2" or 3 "Core
Top/Bottom Margin (mm)
Normal: 20/15 (Premium Luster Photo Paper);
option: Top 3, 15, 20, 45/Bottom 3, 15
Left/Right Margins
3 mm each side; 0.24" total; or 0" at supported BorderFree® widths
BorderFree Print Widths
10", 13", 14", 17", 20", 24"
Integrated Take-Up Reel:
Auto forward and backward; light-based media sensor with inner and outer winding options.
Roll Cutting:
High-speed internal rotary cutter; auto or manual
Minimum auto cut length 5"
Printing Technology:
PrecisionCore MicroTFP 6-channel, drop-on-demand printhead
Minimum Ink Droplet Size:
Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to three different
dot sizes per line
Maximum Print Resolution:
2400 x 1200 dpi
Print Speed: (averaged)
Plain Paper
Draft: (1P) 1,220 sq ft/hr
Speed: (2P) 926 sq ft/hr
High Quality: (6P) 79 sq ft/hr
Premium Photo Glossy
Paper
Speed: (4P) 298 sq ft/hr
Quality: (6P) 174 sq ft/hr
Max Quality: (16P) 79 sq ft/hr
Nozzle Configuration:
Color and monochrome heads;
9600 nozzles(800 x 12)
Printer Language/Drivers
Epson ESC/P® raster photographic drivers standard
Operating Systems
Mac® OS X® 10.7.X,11 or later
Windows®11, 10, 8.1, 8 and 7 (32-bit,64-bit)
Windows Server 2003-2019
Temperature
Operating: 50˚ to 95˚F (10˚ to 35˚C)
Operating (Recommended): 65˚ to 75˚F
Storage: -4˚ to 104˚F (-20˚ to 40˚C)
Humidity:
Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)
Sound Level:
Operating: Approx 49.5 dB(A)
Dimensions:
W:54" x D:20" x H:38"
Interfaces:
SuperSpeed USB 3.0, 100BASE-TX /1000BASE-T/IEEE 802.11 b/g/n/ac, USB memory stick, 960 GB SSD Optional
Warranty
Standard 1-year usually next-business-day on-site repair with
toll-free phone support Monday through Friday. Extended warranties are available.
