The TM-350 MFP Z36 Scan-To-Copy/File/Share system is designed to provide fast, high-quality, large format image capture-to-output. More than just the sum of its parts, it is the versatility of the product that helps make it stand out. This multi-component system gives the user the opportunity to be more productive by being able to print and scan at the same time. The open architecture of the computer can be used to load additional programs, among other things. The printer’s ability to print on a wide variety of media lends itself to uses in many departments and applications as well.

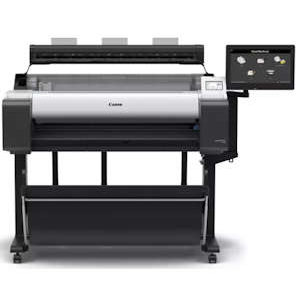

The new compact design of the imagePROGRAF TM-350 MFP Z36 large format printer includes the Z36 scanner that attaches to the top of the printer and a 15.6" touchscreen computer that attaches directly to the printer stand. The touchscreen monitor makes it easier for the user to preview documents for editing and mark-up. This simple-to-use touchscreen makes one-button scanning/copying easier than ever, and the embedded USB port provides the user with ease and convenience. The system allows the scanner and printer to work independently of each other which can help increase productivity.

The Z36 scanner incorporates a SingleSensor assembly technology, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner¹.

The Z36 scanner contains a single component image sensor that is the full width of the scanner and has long life LED Bi-directional illumination. Full width image capture, as opposed to time delayed scanning of separate sections, means less risk of misalignment of scan data. LED’s require virtually no warm up time and provide a wide and consistent color gamut, with low power consumption and less potential for shadowing at creases or folds.

SmartWorksMFP software gives you the tools you need to quickly and easily scan to print/file/share large format technical documents. With a simple to use interface and scan-it-once ability, this software allows for efficient batch scanning and helps create quality scanned images that can be produced in a short amount of time. You can scan to PDF, TIFF and JPEG file formats. SmartWorksMFP software is more efficient than ever before.

The TM-350 printer features an all-new 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 130 ml or 300 ml ink tanks. A total of 490 ml of ink ships standard with the TM-350.

The 6-channel PF-06 Print Head is engineered to work with the printer's high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon's print-head technology that lays down ink with outstanding speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.

With the new L-COA PRO II processor, the new imagePROGRAF TM Series is approximately 30 percent faster than previous models with a speed of up to 3.2 ppm for an Arch D size sheet (24” x 36”).

The ability to calibrate your printer for consistent color quality is now available in the imagePROGRAF TM Series. This helps ensure your output is color consistent over time and across multiple TM Series devices.

The new imagePROGRAF TM Series is able to determine the media type, length, and width, and displays this information on the user interface home screen.

The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
