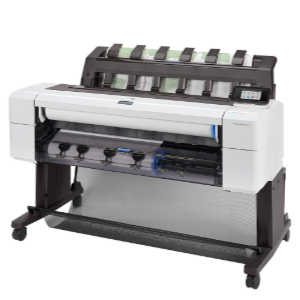

HP DesignJet T1600
36 Inch Large Format Printer Specifications
Print Speed
180 A1/hr, 19.3 sec/A1
Print Resolution
Up to 2400 x 1200 optimized dpi
Technology
HP Thermal Inkjet
Margins
Roll: 0.12 x 0.12 x 0.12 x 0.12 in;
Sheet: 0.12 x 0.87 x 0.12 x 0.12 in
Ink Types
Dye-based (C, M, Y, pK, G); pigment-based (mK)
Ink Cartridges
6 (cyan, magenta, yellow, matte black, photo black, gray)
Ink Droplet
6 pl (C, M, Y, G, pK); 9 pl (mK)
Printhead
1 universal printhead
Minimum line width
0.0008 in (0.02 mm)
Handling
Sheet feed, automatic front-loading roll feed, smart roll switching
, integratedoutput stacker, media bin, automatic horizontal cutter
Sheet Size
8.3 x 11 to 36 x 48 in
Standard sheets
A, B, C, D, E
Media Types
Bond and coated paper (bond, coated, heavyweight coated, superheavyweight plus matte, colored), technical paper (natural tracing, translucentbond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss,semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoorpaper, polypropylene, vinyl)
Hard Disk
500 GB self-encrypting, removeable
Interfaces
Gigabit Ethernet (1000Base-T), Wi-Fi (with optional Jetdirect accessory),supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6,TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery,Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing(9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication(LEAP, PEAP, EAP-TLS), DFS
Print Languages
Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
Drivers
PostScript Printer: Raster, PostScript and PDF drivers for Windows, AirPrint formacOS; Non-PostScript Printer: Raster drivers for Windows, AirPrint formacOS
Security features
HP Wolf Pro Security, HP Secure Boot, Allowlisting, TPM, Role Based AccessControl, LDAP and Kerberos authentication, SNMPv3, HTTPS, Secure-IPP,IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP WebJetadmin compatible, HP JetAdvantage Security Manager compatible, SecureDisk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, encryptedPIN printing, Syslog security logging
Printer
36-in: 55 x 30 x 43 in
Shipping
58.1 x 30.2 x 31.5 in
Printer
Single-roll: 181 lb, dual-roll: 187 lb
Shipping
Single-roll: 249 lb, dual-roll: 258 lb
HP Software and Solutions
HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app formobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HPSmartTracker (optional)
Operating temperature
41 to 104ºF (5 to 40ºC)
Operating humidity
20 to 80% RH
Operating altitude
Up to 9843 ft
Storage temperature
-13 to 131ºF (-25 to 55ºC)
Sound pressure
42 dB(A) (operating), 16 dB(A) (idle)
Sound power
≤5.9 B(A) (operating), ≤4.9 B(A) (idle), ≤3.5 B(A) (sleep)
Consumption
100 W (printing), 36 W (ready),
10 W (sleep), 0.3 W (standby)
Requirements
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
Safety
USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant);
Electromagnetic
Compliant with Class B requirements, including: USA (FCC rules), Canada(ICES),
Environmental
ENERGY STAR; WEEE; ErP; EPEAT Silver; RoHS
What's In The Box
HP DesignJet T1200 Printer, printheads, introductory ink cartridges, printer stand and
media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord.
Warranty
One-year limited hardware warranty. Extended Warranty Options available.
