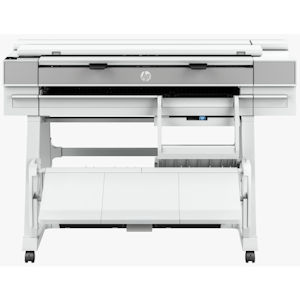

HP DesignJet XT950
36 Inch MFP Printer-Scanner Specifications
Print Speed
36-in: 21 sec/page on D, 120 D prints per hour
Print Resolution
Up to 2400 x 1200 optimized dpi
Technology
HP Thermal Inkjet
Margins
Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Sheet: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Ink Types
4 Colors: pigment-based (C, M, Y, mK)
Page Yield
20 ml of ink yields 101 A1/D pages, taking into account maintenance routines
Ink Droplet
6 picoliters (C, M, Y); 12.6 pl (K)
Printheads
1 (cyan, magenta, yellow, black)
Printhead Nozzles
1376 per color
Minimum line width
0.0008 in (0.02 mm)
Max optical density
15 L* min/1.7 D
Handling
Sheet feed, roll feed, manual sheet feeder, media bin, automatic horizontal cutter
Roll size
36-in: 14.5 to 36 in (279 to 914 mm)
Max. Roll weight: 28.6 Lb.
Sheet Size
Auto sheet feeder: 8.3 x 11 to 12 x 18 in (100 sheet tray)
36-in manual feed: 8.3 x 11 to 36 x 66 in
Standard sheets
Sheet feeder: A, B
36-in manual feed: A, B, C, D, E
Media Types
Bond and coated paper (bond, coated, heavyweight coated, plain,bright white, blueprint), technical paper (natural tracing), film (clear,matte), photographic paper (ID satin, ID gloss), self-adhesive(adhesive matte/gloss, adhesive polypropylene gloss),Polypropylene (matte)
Interfaces
Gigabit Ethernet (1000Base-T), Wi-Fi 802.11 b/g/n
Print Languages
TIFF, JPEG, URF, HP-GL/2, HP-RTL, CALS G4
Print Paths
Wi-Fi Direct, remote printing, HP Click App, HP Click Driver forWindows 11, Apple AirPrint and HP app for Android and iOS devices,Windows and macOS printer drivers, printing support for ChromeOS
Print Drivers
Raster driver for macOS and Windows, HP Click Driver for Windows 11, HP-GL/2 driver for Windows
Security
HP Secure Boot, whitelisting, Security event logging, Disablenetwork ports and protocols, SNMPv3, 802.1x compatibility, TLS/SSL,Semi-permanent-queue Erase, HP Web JetAdmin, HP SecurityManager, SIEM Integration
Printer
36-in: 55.4 x 28.3 x 38.1 in
(Shipping:62 x 24.5 x 30.7 in)
Operating temperature
41 to 104ºF (5 to 40ºC)
Operating humidity
20 to 80% RH
Operating altitude
Up to 9843 ft
Storage temperature
-13 to 131ºF (-25 to 55ºC)
Sound pressure
42 dB(A) (operating), 16 dB(A) (idle)
Sound power
5.8 B(A) (operating), 3.4 B(A) (idle)
Consumption
35 W (printing), 5.5 W (ready), 2.5 W (sleep), 0.2 W (standby)
Requirements
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max
Safety
USA and Canada (CSA certified); EU (RED Directive, EN 62368-1 compliant);Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS)
Electromagnetic
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU(RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI);Korea (KCC)
Environmental
ENERGY STAR, EPEAT, UL ECOLOGO® certified inks, CE marking (including WEEE,RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restrictionrequirements.
Scan Speed
Up to 1.5 in/sec color, 200 dpi;
Up to 4.5 in/sec grayscale, 200 dpi
Scan Resolution
Up to 600 dpi;
Scan Formats
JPEG, PDF, TIFF
Scan Destinations
Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile
Scan Thickness
0.03 in (0.8 mm)
What's In The Box
HP DesignJet XT950 Printer, printhead, introductory ink cartridges, printer stand, spindle, guide, poster, warranty flyer, power cord
Warranty
One-year limited hardware warranty. Extended Warranty Options available.
