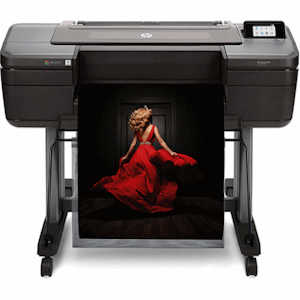

HP DesignJet Z9
24 Inch Large Format Printer
769 ft²/hr1(71.4 m²/hr1) on plain media
Normal: 185 ft²/hr1 (17.2m²/hr1) on coated media
Best: 48 ft²/hr1 (4.5 m²/hr1) on glossy media
Up to 2400 x 1200 optimized dpi
HP Thermal Inkjet
Roll: 0.2 x 0.2 x 0.2 x 0.2 in (borderless on select media3, or on all media
with V-Trimmer4) (5 x 5 x 5 x 5 mm (borderless on select media3, or on all media with V-Trimmer4)
Sheet: 0.2 x 0.67 x 0.2 x 0.2 in (5 x 17 x 5 x 5 mm)
9 (cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray)
7/3 pl dual-drop weight (M, C, PK); 6 pl single-drop weight (Y, CR, MK)
5 universal printheads (valid for all colors)
Minimum line width
0.0008 in (0.02 mm)
Guaranteed Min. Line Width
0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E))6
Short-term color stability
less than 1 dE2000 in less than 5 minutes8
Long term print-toprint repeatability
Average less than 0.5 dE2000, 95% of colors less than 1.4 dE20008
Max optical density
4 L* min/2.5 D8
Single-roll: Roll feed, top sheet feed, rear sheet feed for rigid media, media output bin, automatic
Dual-roll: Two automatic roll feeds, smart roll-switching,
top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
24-in: 11 to 24-in; 44-in: 11 to 44-in;
24-in: 8.3 x 11 to 24 x 66 in
44-in: 8.3 x 11 to 44 x 66 in
24-in: A, B, C, D
44-in: A, B, C, D, E
80 to 500 g/m² (roll/manual feed);
Up to 31.5 mil (8mm)
Digital fine art; Exhibition and event graphics; Graphics design; Photos; Point of sale/display; Posters
128 GB (virtual)8; 500 GB self-encrypting hard disk
Gigabit Ethernet (1000Base-T), Hi-Speed USB Type A Host port,
Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
Mobile: Direct print from mobile apps for iOS, Android and Chrome OS; email
printing with HP ePrint and HP Smart app for iOS and Android.
Raster and PostScript drivers for Windows and macOS; PDF driver for Windows
24-in: 50.9 x 27.4 x 39.3 in
44-in: 71 x 27.4 x 39.3 in
24-in: 56.7 x 30.2 x 28.3 in
44-in: 76.8 x 30.2 x 28.3 in
24-in: 159 lb.
44-in: 216 lb.
24-in: 225 lb
44-in: 302 lb.
HP Software and Solutions
Printer drivers, HP Click, HP Web Jetadmin, HP JetAdvantage Security Manager, HP DesignJet
Utility including HP Color Center, HP Partner Link Pay-per-use, HP MPS
Recycled plastic in printer
41 to 104ºF (5 to 40ºC)
20 to 80% RH
Up to 9843 ft
-13 to 131ºF (-25 to 55ºC)
42 dB(A) (operating), 16 dB(A) (idle)
5.8 B(A) (operating), 3.4 B(A) (idle)
100 W (printing), 32 W (ready),
6.5 W (sleep), 0.1 W (standby)
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
USA and Canada (CSA certified)
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES)
ENERGY STAR; WEEE; ErP; EPEAT Silver; RoHS
What's In The Box
HP DesignJet Z9 PostScript Printer, printheads, introductory ink cartridges, printer stand and
media bin, spindle, 3-in core adapter9, quick reference guide, setup poster, power cord.
One-year limited hardware warranty. Extended Warranty Options available.
- Maximum rate of output for color image 100% color coverage. Printed in Economode, on HP Bright White
Inkjet Paper (bond), maximum roll size, with Original HP Vivid Photo Inks. Measured on a 44-in printer.
- Mechanical printing time with Original HP Vivid Photo Inks. Measured on a 44-in printer.
- Borderless printing available on photo, polypropylene, and backlit roll media.
- Except self-adhesive vinyls and non-cuttable medias.
- ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with HP Vivid Photo Inks.
- Measured on HP Matte Film.
- ICC absolute colorimetric accuracy on HP Premium Instant-dry Satin Photo Paper with HP Vivid Photo Inks.
- With HP Premium Instant-dry Satin Photo Paper with HP Vivid Photo Inks.
- Based on 4 GB RAM.
- Not included in the box for 24-in models.
