Offering a stunning array of performance, efficiency and
reliability, Panasonic's KV-S8147 high volume production scanner is
optimized for deployment in organizations with heavy volumes of
paperwork. With the ability to scan virtually any type of document,
from business cards to12x17" paper, the KV-S8147 is an
essential solution for any organization with a steady flow of
Beyond standard documents, the KV-S8147 also features the ability
to scan continuous documents of unlimited length such as
EKG reports or well logs. The KV-S8147's extensive hardware
elements are further maximized by a range of available software
options. With the ability to purchase the unit bundled with either
Panasonic's powerful "Image Capture Plus" or Kofax's advanced "VRS
Elite Workgroup", the scanner will handle precision document
reproduction and versatile image processing with ease.
Panasonic KV-S8147 Scanner Main Features
750-page automatic document feeder
USB 3.0 Interface
Stapled Document Detection
Intelligent double feed detection
Intelligent Feed Control (input)
Harware Image Processing
Optional Pre/Post Imprinter
100,000 documents/day (daily duty cycle)
Watch the video (turn sound off)
Stapled Document Detection
Both the KV-S8127 & the KV-S8147 feature Staple Detection
Multiple sensors are used to detect various types of stapled
documents, and to immediately stop the scanner when stapling is
detected. This minimizes damage to both the document and the optical
Even when documents are set in different directions, this function detects the
direction of the scanned text and automatically rotates the document into the correct direction.
This boosts work efficiency by eliminating the need to change the direction of each page in advance
when scanning large quantities of documents with various sizes and directions.
750 Page ADF
A large capacity ADF (Automatic Document Feeder) is an essential
part of any scanning experience. Users simply place up to the
allotted document capacity into the ADF in the tray and start the
scan job. This allows for an easily managed scan process, and saves
users time by eliminating the need to individually feed pages one by
one through the scanner.
Mixed Size Document Feeding
The ability to handle "Mixed Size Document Feeding" is an essential feature for any situation
in which the scanner user may encounter the need to scan a multitude of different sized documents.
This helps save time by feeding documents of varied sizes at the same time, from business cards to the
maximum document size, without the hassle of having to continuously stop the scanning process to adjust settings or guiderails.
Double-Feed Prevention Roller
Ensuring reliable scanning of large amounts of
documents, the "Double-Feed Prevention Roller" helps prevent
scanning mis-feeds. Assisting the document feeding process, the
double-feed prevention roller separates the feeding documents from
the second sheet onward. This reduces, and ultimately helps to
prevent the number of occurrences of sheets coming through as a
Long Paper Mode
The highly reliable paper feed mechanism quickly and accurately scans long documents.
This function boosts work efficiency by smoothly scanning long monitoring sheets, like those used for EKG documents.
Documents of unlimited length can be scanned as a single image.
Curved or Straight Paper Path
To provide scanner users with the most versatile scanning
environments, the user has the choice to utilize a "Curved or
Straight Paper Path". While the typical output via the curved path
outputs to an output tray at the front of the unit, the user can
choose to utilize a straight path which outputs straight through to
the rear of the unit. The choice to utilize the straight paper path
ensures high reliability with thick or long paper. The possibilities
for both usage and installation location are almost unlimited as a
result of this feature.

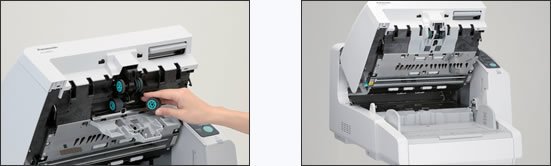

Panasonic scanners are designed with the comfort and ease of use of
the scanner user in mind. The clamshell design allows for full, easy
access to the main paper path for Easy User Maintenance. This allows
scanner users to effortlessly clear the occasional paper jam, clean
the unit or replace the rollers without having to call a service
Imprinter Option Available
With the "Imprinter Option Available", this scanner accessory can be mounted to the scanner and used to print a
string of characters on documents. The imprinter is beneficial in
helping to raise filing efficiency and reliability, as well as
ensuring that documents are processed correctly post scanning.
What's a Pre-imprinter ? The pre-imprinter prints text on the surface of a
document before its image is scanned so the text data is
included in the scanned image data.
What's a post-imprinter ? The post-imprinter prints text on the back side of a
document after its image is scanned so the text data is NOT included
in the scanned image data "scanned 1-1-2013"
Auto Erasure Security
Scanning situations requiring the highest levels of security are
benefitted by Auto Erasure Security. Scanners featuring this high
security technology automatically erase all data from the scanner's
built-in memory. This feature helps secure against data leaks and
aids in preventing hardware hacking.
Other Functions INCLUDED
Barcode Detection, Patch Code Detection, Automatic
document separation, and Control sheet functions are included with
Patch code sheets are entered amongst a stack of documents.
For example, you can use the patch code sheet to change the
scanner "mode" settings from Black & White to Color mode & then
back again. Great when you have photos at the end of each file
folder to scan in color. No separate batches needed !
Image Capture Plus Software
Bundled standard with all Panasonic Scanners, the Panasonic Image
Capture Plus Software is your ultimate capture solution. Featuring a
wealth of image processing functionality, it ensures that you have
the tools necessary to handle virtually any scanning requirement.
Features of the Panasonic Image Capture Plus software include:
Automatic Brightness Adjustment, Automatic Image Emphasis, Zonal
OCR, Automatic Binary/Color Distinction, Double Exposure, Blank Page
Removal, Automatic Crop, Automatic Deskew, MultiStream, Dynamic
Threshold, Multi-Color Dropout, Hole Removal, Background Smoothing,
2-Page Separation, Multi-Crop, and more.
Kofax® VRS Elite Software
For environments where the Kofax® Virtual Rescan Elite Software
is required, Panasonic also offers the Panasonic KV-S8127 scanner
bundled with the Kofax® VRS software. Panasonic scanners that
include the VRS software bundle are designated with a (-V) at the
end of the model number. The Kofax® VRS Elite software provides a
variety of advanced scanner applications such as: Device Health
Monitor, Centralized Licensing, Profiles and Customizable User
Interface, and more.
KV-S8127 Scanner Specifications
Simplex / Duplex
120/240 (B/W & Color 200/300 dpi)
Contact Image Sensor Technology
Min.: 1.9" x 2.75"
(CW Model) Max.: 12.09" x
Paper Scan Weights
U-Turn Path: 5.2-68 lbs.
Manual Path: 5-146 lbs.
600 dpi optical (interpolated up to 1200 dpi)
Ultrasonic Sensor (3)
Red, Green, Blue & Multi Color
Quick Installation Guide, Power cord, USB 3.0 Cable, Panasonic
Software CD-ROM, Double Feed Prevention Roller, Shading Paper and
To ensure optimal scanning performance, the paper feed rollers
should be cleaned once a week or when 20,000 sheets or more are fed in
the unit. Simply feed these sheets through the rollers to clean them !
ALL Panasonic scanner models
Your Price $22
Roller Kit For the KV-S81X7 Series
Your Price $379
Pre or Post Scan Imprinter Unit
Your Price $2092
Imprinter Cartridge KV-SS021
Your Price $121
Your Price $549.00
Warranty Upgrades This model comes with a 90 day
Next Business Day (NBD) on site
12 Month NBD On site Repair Warranty.
Price $ 995.00
12 Month NBD On site Repair Warranty with 3 PM
(Periodic Maintenances -includes Kits)
