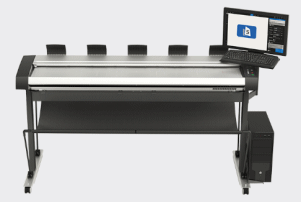

the ScanStation Pro
large format scanner for production

Your full, open system:

Scanner, 21.5” full HD touchscreen, Nextimage REPRO software,
height-adjustable stand, PC basket and keyboard tray.
Simply add your choice of PC.

The ScanStation is designed specifically for productivity, powered by new unique features that reduces the digitization process. With 30% more productivity than your current scanner, you get an unmatched Return On Investment. Get best-in-class image quality and the most efficient way to scan, copy, file and archive any wide-format document.
This system includes the scanner, stand, NextImage Pro software with 21.5" multi-touch screen  for scanning and/or copying. Each model has 2 Gigabit ethernet port, and 4xUSB 3.0 port and 1x USB 2.0 port.
Includes a 2 Year Parts Warranty


The ScanStation Pro Solution
comes in 5 different scanner model configurations:

IQ Quatro 4450
Includes:
IQ4450 Scanner
Adjustable Stand
21.5" multi-touch Monitor
NextImage Repro


List Price
$9495
Your Price
$8295
Buy now button
IQ Quatro 4490
Includes:
IQ4490 Scanner
Adjustable Stand
21.5" multi-touch Monitor
NextImage Repro


List Price
$10,795
Your Price
$9695
Buy now button
HD Ultra i4250s
Includes:
i4250s scanner
Adjustable Stand
21.5" multi-touch Monitor
NextImage Repro


List Price
$12,850
Your Price
$12,295
Buy now button
HD Ultra i4290s
Includes:
i4290s scanner
Adjustable Stand
21.5" multi-touch Monitor
NextImage Repro


List Price
$15,600
Your Price
$13,395
Buy now button
HD 5450Plus
Includes:
HD 5450+
Scanner
Adjustable Stand
21.5" multi-touch Monitor
NextImage Repro

List Price
$22,500
Your Price
$18,595
Buy now button
PC NOT Included
Our prices include free shipping, a $275 value !


ScanStation Features

Productivity for large format scanning
The ScanStation Pro facilitates your large-format workflow and is designed specifically for productivity, powered by new unique features that reduce the digitization process.
With 30% more productivity than your current scanner, you get an unmatched Return Of Investment.
Get best-in-class image quality and the most efficient way to scan, copy, file and archive any wide-format document.
Maximize productivity with the ultra fast performance and top image quality in our HD Ultra range. Benefit from the ideal project workgroup facilities of IQ Quattro.

REimage, a new Contex technology

No need to retrieve and rescan your original paper documents. Virtually go back to your RAW scans and capture specific contents, which you did not choose to include in your first file formats. We call it REimage, only available with Contex ScanStations.
Ergonomy
For your best ergonomy, the ScanStation Pro offers the 21.5" multi-touch wide screen. In addition, the screen stand has
a height adjustment:

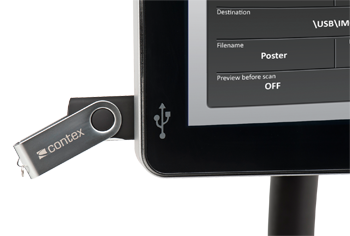

Scan To USB 3.0
Scan to USB 3.0 in a way that simulates a camera. This allows images to be imported into standard tablets including iPad's

Key features
  • 2x Gigabit Ethernet with xDTR2 standard
  • Scanner sharing across a network, and sending files to remote desktop
  • Preview, crop and adjust image settings
  • Scan-to-copy, -email, -network, -FTP and USB
  • SnapCrop: Easy image cropping (Contex patent)
  • Scan to USB and import images to standard tablet pc platforms
USB with xDTR2
Delivering 3 times the bandwidth of USB2, our unique Gigabit Ethernet implementation with xDTR2 is lightning fast and accelerates workflows even further via network sharing, where scans can be controlled from any computer.

The ScanStation Pro



The ScanstationPro Stand is designed for production scanning. (PC Not Included)



The ScanStation Pro
Scanner models

Description/Model IQ 4450 IQ 4490 HD Ultra i4250s HD Ultra
i4290s
HD 5450 Plus
200 dpi RGB Color 7.0 ips 14.0 ips 4.0 ips 8.0 ips 3.0 ips
(Turbo)
200 dpi  Grayscale/Monochrome 14.0 ips 14.0 ips 12.0 ips 12.0 ips 12.0 ips
(Turbo)
Maximum Scan Width 44" 44" 42" 42" 54"
Maximum Media Width 47" 47" 44" 44" 56"
Optical Resolution 1200 dpi 1200 dpi 1200 dpi 1200 dpi 508 dpi
Maximum Resolution 9600 dpi 9600 dpi 9600 dpi 9600 dpi 9600 dpi
Scan Technology Clean Scan CIS Clean Scan CIS 5 x 4
Linear
CCD's
5 x 4
Linear
CCD's
4 x 4
Linear
CCD's
Max. Media Thickness .08 Inch
(2mm)
.08 Inch
(2mm)
.6 Inch
(15mm)
.6 Inch
(15mm)
.6 Inch
(15mm)
Interface USB & Gigabit Ethernet USB & Gigabit Ethernet USB & Gigabit Ethernet USB & Gigabit Ethernet USB
Only
These are just a few specs, for comparison.
Call us and ask about the differences between these models.
Download the Specifications in PDF.

Stand, Screen and PC Platform

  For All Models
Touch Screen 21.5” Multi-Touch Widescreen Full TFT LCD / 1920 x 1080 pixels
Screen Mounting Right or left side touch screen mounting.

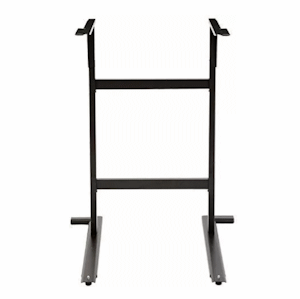

Adj. Stand
Working Heights
IQ Quatro:
32.8 / 33.8 / 34.8 inch
HD Ultra:
36.3 / 37.3 / 38.3 inch
HD 5450:
36.0 / 37.0 / 38.0 inch
PC Platform for CPU (PC NOT Included) Max PC size/weight: 490x400x107mm, 12kg (19.3x15.7x4.21in, 26 lbs.)
Recommended PC “Slimline” desktop PC, 2.0GHz Intel Core 2 Duo or faster. 2GB RAM

Full Featured Nextimage Repro Software Included

Operating System 32 and 64-bit: Windows 10, Windows 8, Windows 7, Vista
File formats TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, others
Software Key Features Scan to Email / Copy / File
Download the Specifications in PDF.


Accessories for the ScanStation Series

There aren't any accessories available for the Scanstation series.


Warranties for the ScanStation Series

The Series includes a 2 year Parts Warranty.  You can upgrade to a Two Year On site Warranty Your Price
$ 925
add to cart button

We do not have any current reviews of this product.
Please follow the link below to add your review:
Product Reviews Form
